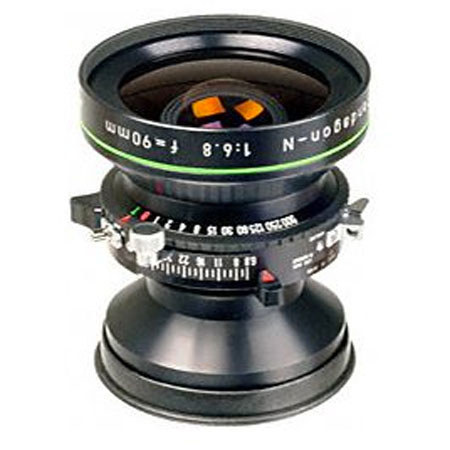

About the Rodenstock 90mm

The Rodenstock 90mm f/6.8 Grandagon-N Lens is a professional wide angle lens for the 4x5 or 5x7 formats, providing an angle of view on 4x5 which is similar to a 24mm lens in the 35mm format. The Grandagon-N series is an 8-element, highly-corrected optical formula known for great contrast and distortion correction. This is a perfect lens for capturing interior spaces, buildings, landscapes, etc. The 102deg.angle of coverage permits a generous 39mm of all-direction shift on the 4x5 format, particularly beneficial when capturing a building from ground level.

This lens is recommended for use between f/22 and f/32 apertures. For critical work with transparency film, it is strongly recommended to use the Rodenstock 17002 dedicated center filter.

Rodenstock 90mm Includes

  • Rodenstock 160503 90mm f/6.8 Grandagon-N Lens
  • Copal 0 Shutter
  • 70mm Push-On Front Cap
  • 60mm Push-On Rear Cap
  • Rodenstock Warranty

Rodenstock 90mm Features

  • Extremely sharp ultra wide lens for professional results in the 4x5 format
  • Highly corrected 8 element optical formula
  • Excellent correction of perspective distortion
  • Increased coverage to 102deg
  • Maximum image circle of 221mm allows ±39mm of rise/fall/shift (in both vertical/horizontal composition) for 4x5 format
  • Accepts 67mm filters
  • Optional center filter for critical correction of light falloff when working with transparency films
  • Standard-style Copal 0 shutter with calibrated aperture scale and maximum 1/500th speed

Rodenstock 90mm Specifications

Focal Length 90 mm
Aperture Range f/6.8 - 45
Covering Power 102deg.
Optical Configuration Groups: 4 Elements: 6
Flange Focal Distance 94 mm
Flange Thread 32.5 mm x 0.5
Image Circle 221 mm @ f/22
Shutter Copal 0
Shutter Speeds 1 / 500 to 1 second B, T
Slip-On Cap Size Front: 70 mm
Filter Thread Front: 67 mm
Overall Length 3.09" (78.5 mm)
Weight 16.23 oz (460g)
