Rosco

Rosco LitePad Quick Kit AX Daylight, 5800K

SKU: ROLAQKD MFR: 290240AXBKIT
Please note! This item will be Drop-shipped to you directly from the Manufacturer/Distributor.
Estimated Delivery time is from 1 to 2 weeks.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,872.00
Free Shipping
Qty:

Add to Wishlist

Protect your investment

About this item

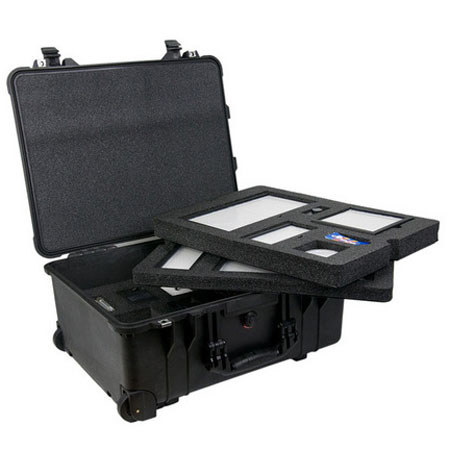

The Rosco LitePad Quick Kit AX (Daylight) contains five 5800K rectangular Litepad Axioms from 3 x 6 - 12 x 12" as well as a 3" circular HO+ LitePad. This pared down kit is built on the core of Rosco's most comprehensive kits but with less accessories. The kit includes 4 transformers as well as battery cables to power the LitePads. A dimmer, mounting pins and car adapter are included with a hard, wheeled case to house the whole kit.

The LitePad Axiom is Rosco's next generation panel which features a rugged aluminum and steel housing with an integrated gel slot and provision for attachment of Axiom series arms, brackets and adapters via 1/4"-20 bolt or baby pin for maximum flexibility. Other mounting options include touch fasteners and gaffers tape for the smaller units which measure 3 x 6" - 12 x 12 " and weigh in at just 0.8 - 3.95 lb. Even the 24 x 24" panel weighs only 13.7 lb. The 12V DC connector is now removable to facilitate packing and minimize cord damage and downtime. Lamp life is estimated at 60,000 hours making the LitePad virtually maintenance-free.

The LitePad HO+ has similar performance specs as the Axiom but minus the metal frame making it even thinner and lighter. Every HO+ is only 0.37" thick and weighs in at 0.10 lb (3" circle) to 8.3 lb for the 20 x 24" model.

What's Included With This Item

  • Rosco LitePad 3" Circle HO+ Daylight
  • Axiom 3 x 6" Daylight
  • Axiom 3 x 12" Daylight
  • Axiom 6 x 6" Daylight
  • Axiom 6 x 12" Daylight
  • Axiom 12 x 12" Daylight
  • 4 x Three Amp Transformer
  • Car Adapter
  • 4 x Y Splitter
  • 4 x Right Angle 10' Ext. Cable
  • 4-Way Splitter
  • AA Battery Holder
  • 4-Pin Adapter Cable
  • Anton Bauer Adapter Cable
  • 3" Bracket
  • 3 x Baby (5/8") Pin 1/4"
  • 20
  • 2 x Single Fader Dimmer
  • 1560 Pelican Case
  • Swatchbook Cinegel
  • Rosco Warranty

Key Features

  • Rugged Design: LitePad Axiom's housing is constructed from steel and aluminum making it the strongest, most durable LitePad available. The metal housing also allows for the attachment of different mounting hardware and filters directly to the LitePad
  • Versatile Mounting: With LitePad Axiom's quick-release mounting system, it is now possible to change out the mounting option in just a few seconds. Whether it is a 1/4"-20 bolt, a baby pin or even a wall plate, it only takes a moment for a solid connection
  • Interior Connector: LitePad's new interior connector eliminates the traditional wire, which had the potential to be pulled out during use. Based on user feedback, this feature was introduced to make the LitePad more rugged and easier to use
  • Daylight / Tungsten: LitePad is available in two color temperatures, daylight (approx. 5800K) and tungsten (approx. 3800K). With tungsten and daylight LitePads, which have equal light output, there is no need to color correct your LitePad, losing valuable light intensity
  • LitePad HO+: Slim Profile: LitePad HO+ is only one third of an inch (8 mm) thick, making it one of the thinnest light fixtures in the world. Its slim profile allows the LitePad to be placed and even hidden in areas that a conventional light fixture could not fit
  • Brightness: LitePad HO+ offers the brightest LitePad to date. With LEDs on all four edges of all standard sizes, LitePad HO+ gives you the maximum output in the smallest of spaces
  • Lightweight: Weighing significantly less than a conventional light source, the LitePad HO+ is capable of being mounted in many different ways and places
  • Soft Quality of Light: One of LitePad's most important attributes is the quality of light it produces. LitePad outputs a soft, even beam of light which is perfect for filling in shadows, creating "beauty" light, or to mimic a practical light in the scene
  • Low Heat: Because LitePad is an LED light source, the amount of heat generated is very low. In the center of the LitePad, the unit is cool to the touch
  • Minimal Power Consumption: With each LED only consuming a quarter of a watt, LitePad is an extremely energy efficient light source. There is no longer the need for kilowatts of power or a generator to power a set full of lights
  • Easy on the Eyes: Unlike many LED sources, LitePad is a bounced LED light - not an array of LEDs pointing directly forward. Performers or technicians can look directly into LitePad without squinting, hurting their eyes or getting a headache
  • Dimmable: LitePads are a fully dimmable LED product. The proprietary Single Fader Dimmer and 2 CH / DMX Dimmer can smoothly dim any standard size LitePad with no color temperature change. With LitePad's dimmers, you are able to set the exact light intensity you need

Technical Specs

Source LED
Color Temperature 5,800K
Light Output At 18" (457.2 mm): 3" circle: 9 fc
3 x 6": 23 fc
3 x 12": 37 fc
6 x 6": 34 fc
6 x 12" 60 fc
12 x 12": 90 fc
Lamp Life 60,000 hours
Power 12V DC input
Operating Temperature -22 - 185deg.F (-30 - +85deg.C)
Dimensions Circle 3" (diameter) x 0.37" (76.2 x 9.4 mm)
3 x 6 x 0.64" (76.2 x 152.4 x 16.2 mm)
3 x 12 x 0.64" (76.2 x 304.8 x 16.2 mm)
6 x 6 x 0.64" (152.4 x 152.4 x 16.2 mm)
6 x 12 x 0.64" (152.4 x 304.8 x 16.2 mm)
12 x 12 x 0.64" (304.8 x 304.8 x 16.2 mm)
Weight 3" Circle: 0.1 lb (0.04 kg)
3 x 6": 0.8 lb (0.36 kg)
3 x 12": 1.3 lb (0.58 kg)
6 x 6": 1.45 lb (0.65 kg)
6 x 12": 2.25 lb (1.0 kg)
12 x 12": 3.95 lb (1.8 kg)
