Rolls 4-Channel RCA Distribution Amplifier, +12 dBV Max Input Level, >90 dB S/N Ratio

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$100.00 $4 per week
Free Expedited Shipping
Add to Wishlist In Stock

Protect your investment

About this item

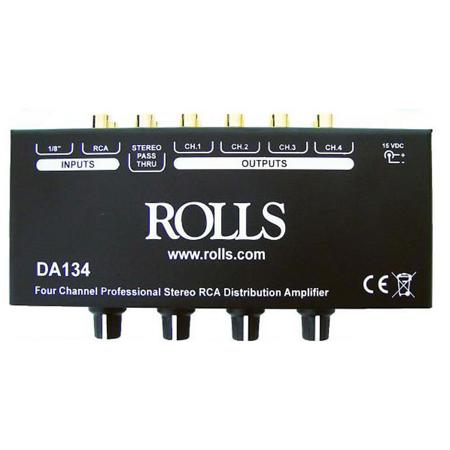

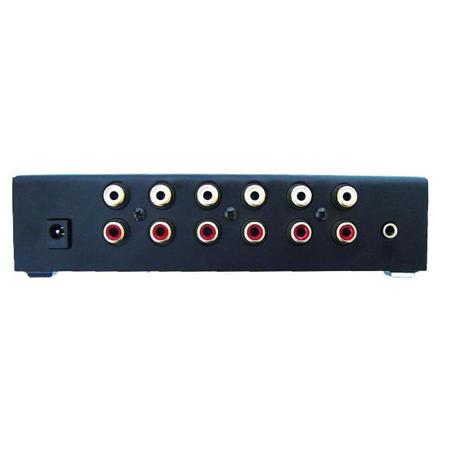

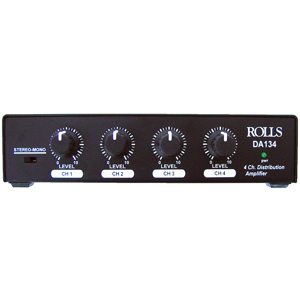

Designed for high end RCA audio distribution the Rolls DA134 is a four-channel distribution amplifier. RCA and 1/8" inputs that can be switched from mono or stereo. The DA134 will distribute a mono signal to eight outputs, or a stereo signal to four stereo outputs. The outputs are designed to drive line level signals. The DA134 is the perfect distribution amp anywhere high quality sound distribution is required.

What's Included With This Item

  • Rolls 4-Channel RCA Distribution Amplifier
  • PS27s Power Supply
  • Rolls 1 Year Parts and Labor Limited Warranty

Key Features

  • Expands the output of a stereo device to multiple outputs
  • Can raise the output level to true line level for any output
  • Stereo 4 channel distribution amplifier
  • Front panel volume controls
  • Mono or Stereo operation
  • DC low end frequency for audiophile frequency response
  • Small compact design
  • Accepts inputs directly from iPad / iPod or laptop
  • Stereo pass thru: For connection to another DA134

Technical Specs

Input Impedance 10 K Ohms
Max Input Level +12 dBV
Output Impedance 470 Ohms
Max Output Level +12 dB
Max Gain 20 dB
S/N Ratio >90 dB
Cross Talk -70 dB (stereo)
Frequency Response DC - 60 kHz, +/- 1 dB
THD <.008%
Power 15 VDC
Dimensions 6.5" x 3.5" x 1.5" / 165.1 x 88.9 x 38.1 mm
Weight 1.19 lbs / 0.54 kg
