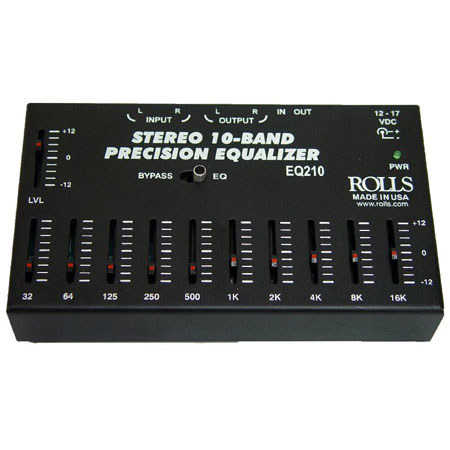

Rolls EQ210 Stereo 10 Band Graphic EQ, Wall Mountable
Rolls

Rolls EQ210 Stereo 10 Band Graphic EQ, Wall Mountable

SKU: ROLEQ210 MFR: EQ210
Please note! This item will be Drop-shipped to you directly from the Manufacturer/Distributor. Estimated Delivery time is from 1 to 2 weeks.
What's Included
What's Included With This Item:
  • Rolls EQ210 Stereo 10 Band Graphic EQ
  • External Power Supply
  • 12VDC Power Adapter
  • Rolls 1 Year Parts and Labor Limited Warranty
Write a Review
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$119.29
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Rolls EQ210 is a small graphic EQ that enables you to boost or cut the signal at 10 different frequency points. The EQ210 is perfect for installations and since it is stereo it's great for use with desktop speakers, mixers and powered speakers, micpreamps, keyboards, computers and more.

What's Included With This Item

  • Rolls EQ210 Stereo 10 Band Graphic EQ
  • External Power Supply
  • 12VDC Power Adapter
  • Rolls 1 Year Parts and Labor Limited Warranty

Key Features

  • Stereo equalization
  • 10 frequency controls on standard ISO centers
  • 12 dB of signal boost or cut for each frequency level control
  • Overall Level control with 12dB of signal boost or cut
  • Active Bypass switch in the event of a power loss
  • Stereo RCA and 1/8" (3.5mm) Input and Output jacks

Technical Specs

Input Impedance 50K Ohms Nominal
Output Impedance 100 Ohms
Max Input Level +24 dBV
Max Output Level +14 dB
Center Freq +/-5% Standard ISO
Boost/Cut Range +/- 12 dB
Bypass Switch Active
Frequency Response 20 - 20 kHz +/- 1 dBV
Dynamic Range 95 dB A Weighted
S/N Ratio 85 dB
Power +/- VDC 150 mA (center neg.)
Dimensions (W x H x D) 6.4" x 3.7" x 1.125" / 16.25 x 9.39 x 2.84 cm
Weight 1 lbs / 0.45 kg
