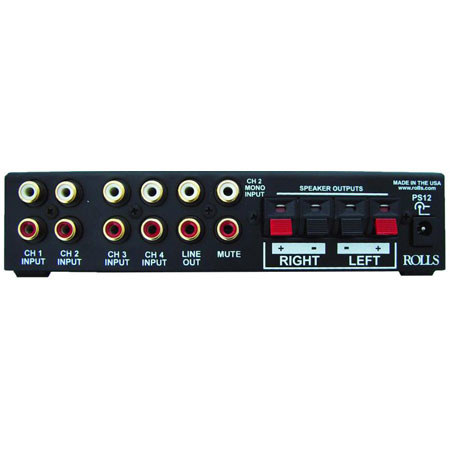

Rolls MA254 Compact Stereo 5W Class D Mixer Amplifier
What's Included With This Item:
- Rolls MA254 Compact Stereo 5W Class D Mixer Amplifier
- 12 VAC PS12 External Power Supply
- Rolls 1 Year Parts and Labor Limited Warranty
The Rolls MA254 is a compact class D stereo amplifier with a 4 CH. stereo mixer built in. It has 5 watts per channel @ 4 Ohms. The class D low heat design gives the MA254 the ability to be mounted in very tight applications. It will work great in ceilings by projectors, or anywhere small and heat free amplification is required.
The MA254 is in an all metal chassis. The MA254 has an included 12 VAC external power supply. The 4 channel mixer section consists of 4 separate RCA stereo inputs and a 3.5mm (1/8") stereo input perfect for an ipod or laptop computer type input.
|Line Input Impedance||10K Ohms|
|Power Output||5 watts X 2 @ 4 Ohms|
|Voltage Gain||30 dB|
|Maximum Supply Voltage||24 VDC|
|Bandwidth||20Hz - 25 kHz|
|Dimensions (W x H x D)||6.75" x 3.5" x 1.5" / 17.14 x 8.89 x 3.81 cm|
|Weight||1 lb / 0.45 kg|
