Rolls MP13 Mini Microphone Preamp, Single Gain Control

SKU: ROLMP13 MFR: MP13

Our Price

$56.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

List Price: $90.00

Availability: Temporarily On Backorder Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. Notify me when in stock

See all shipping options

Ways To Save

Product Highlights

  • Simple and economic single-channel microphone preamp
  • 1/4 and XLR inputs/outputs
  • Provides +36V Phantom Power
  • Output designed for mono or stereo applications
  • Works with dynamic, Phantom and Headset mics
  • XLR and 3.5mm inputs
  • Works with 9 to 12 Vdc

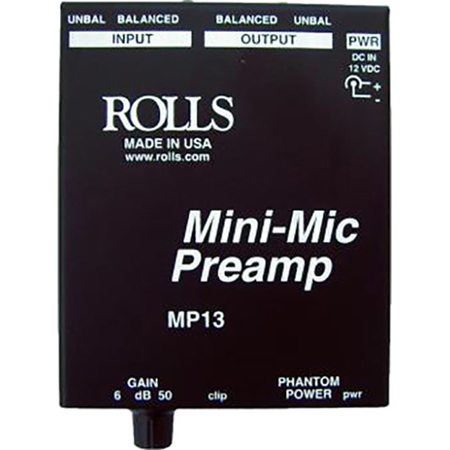

Rolls MP13: Picture 1 regular $56.00

About Rolls MP13

The Rolls MP13 Mini Microphone Preamp is a single-channel microphone preamp that is designed to provide a small, simple and inexpensive solution for a variety of applications. The unit has both XLR and 1/4" inputs and outputs and a single gain control with a clip indicator. Phantom powering (+36V) is included for use with a condenser microphone. The 1/4" output is specially designed for use as either a mono unbalanced output, or a stereo headphone output.

Rolls MP13 Features

  • A simple and economic single-channel microphone preamp
  • 1/4" and XLR inputs/outputs, with a single gain control with clip indication
  • Provides +36V Phantom Power for condenser microphones
  • Output designed for mono or stereo applications
  • Works with dynamic, Phantom and Headset mics
  • XLR and 3.5mm inputs
  • Works with 9 to 12 Vdc

Rolls MP13 Specifications

Number of Channels
1
Inputs
1 x XLR microphone, 1 x 1/4" unbalanced
Output
1 x XLR, 1 x 1/4" (doubles as an unbalanced output or headphone output)
Phantom Power
+36V
Multi Function
No
Gain Range
50 dB XLR, 44 dB 1/4"
Noise
EIN: -129dB
Input Impedance
10K Ohms balanced/unbalanced
Max Input Level
+4dBV XLR balanced, +10dBV unbalanced
Phase Shift
<10 deg. 20 Hz - 20 kHz
THD
<.01%
IMD (SMPTE)
< .01%
CMRR
>80 dB
EIN
-108dB max.
Power
12VDC
Dimensions
3.4" x 4.2" x 1.4" / 8.63 x 10.66 x 3.55 cm
Weight
1 lbs (.45 kg)
Mfr #
MP13
SKU
ROLMP13
