Rolls

Rolls RA102 10 Channel Professional Headphone Amplifier

SKU: ROLRA102 MFR: RA102
Please note! This item will be Drop-shipped to you directly from the Manufacturer/Distributor.
Estimated Delivery time is from 1 to 2 weeks.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$208.00 List Price

Our Price

$157.00 $7 per week
Free Shipping
Qty:
Add to Wishlist

Protect your investment

About the Rolls RA102

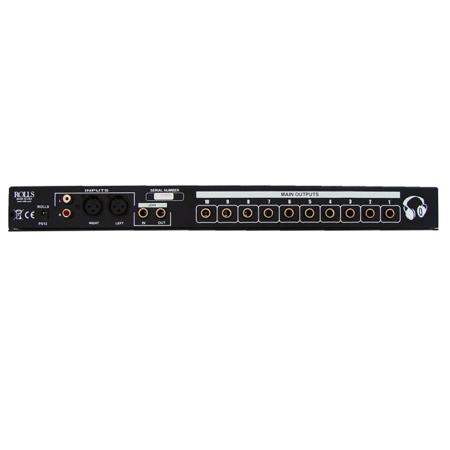

The Rolls RA102 is a ten channel professional headphone amplifier. Designed with volume controls and 1/8" headphone outputs on the front of the unit, along with 1/4" headphone outputs on the back of the RA102 for each channel. The RA102 has the connections for any professional application. The join function allows many RA102's to be linked together with out any signal loss or impedance issues. It has XLR balance inputs and RCA stereo inputs on the back of the RA102.

Rolls RA102 Includes

  • Rolls RA102 10-Channel Professional Headphone Amplifier
  • AC Adapter
  • Rolls 1 Year Parts and Labor Limited Warranty

Rolls RA102 Features

  • 1U Chassis to maximize your rack space
  • Strain relief for AC adapter
  • Both bal XLR and unbal RCA inputs
  • Suitable for very wide range of headphones
  • Join in and join out jacks for expanding to all the channels you want

Rolls RA102 Specifications

Input Impedance 10K Ohms unbalanced
Max Input Level +18 dBV
Input Connectors RCA, R & L balanced XLR
Outputs 10: 1/4" TRS Stereo jacks
10: 1/8" (3.5 mm) TRS Stereo jacks
Max Gain 20 dB/Channel
Max Output Power Up to 250 mW/side, 500 mW/Channel
Frequency Response 20 Hz - 30 kHz
S/N Ratio 90 dB
THD <.008%
IMD <.008%
Phase Shift (In to Out) 0 deg.
Slew Rate 2 V per microsecond
Crosstalk - 65 Db
Power 12 VAC (Rolls Model PS12)
Headphone impedance 8 Ohms to 1000 Ohms
Dimensions 19" x 1.75" x 3.125" / 48 x 4.5 x 17cm
Weight 7 lbs / 3 kg
