About Rolls RDB109

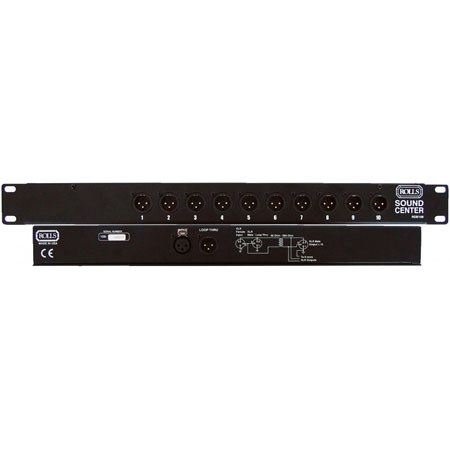

The Rolls RDB109 Sound Center distributes a single balanced XLR input into ten transformer-isolated balanced XLR outputs. The RDB109 may be combined with the MP13 mic preamp, CL151 mic preamp/compressor limiter, or DU30 mic preamp/ducker for microphone access via the docking bay. It is a single rack space unit with a durable steel construction, perfect for installation in any professional sound rack.

Rolls RDB109 Features

  • Balanced XLR female input
  • Ten transformer-isolated balanced XLR male outputs
  • Docking bay for addition of Rolls mic preamps
  • Single rack space unit

Rolls RDB109 Specifications

1 x XLR Female Input
1 x XLR Male Loop Through
10 x XLR Male Outputs
Frequency Response
30 - 20kHz +0 /- 3 dB
Output Impedance
600 W each
Input Impedance
60 W
Dimensions (W x H x D)
19" x 1.75" x 2.5" / 480 x 45 x 64 mm
4 lbs / 1.81 kg
