Rolls REQ215 Dual 15 Band Graphic Equalizer
Rolls

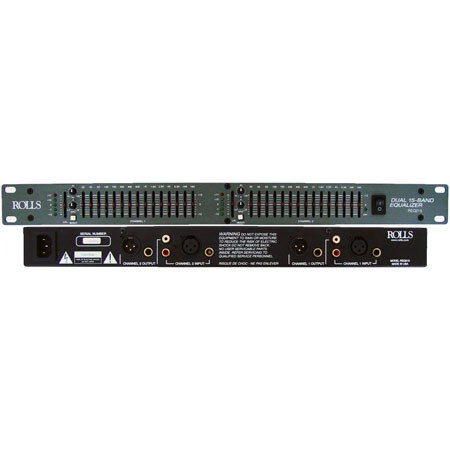

Rolls REQ215 Dual 15 Band Graphic Equalizer with High and Low Pass Filters

SKU: ROLREQ215 MFR: REQ215
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$239.95
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

The REQ215 from Rolls is a dual channel, 15-band graphic equalizer that is a useful signal processing tool where precise frequency control is needed across the audio spectrum. Designed for sound reinforcement and recording applications, the smooth band-pass filtering and transparent low-noise circuitry provide virtually distortion free operation.

Since the frequency band centers are ISO standard, the unit is compatible with most real time analyzers. When used with an analyzer, the REQ131 may be used to tune an acoustical environment to avoid feedback, increase clarity and flatten the overall frequency response of an acoustical environment.

Key Features

  • Dual channel, 15-band graphic EQ in a one space, rack-mount chassis
  • High and low pass shelving filters
  • XLR and 1/4" balanced and RCA inputs and outputs
  • Passive bypass for making accurate comparison of source and processed audio

Technical Specs

Frequency Response 16 Hz to 30 kHz +/-3 dB
THD <.03%
S/N Ratio >90 dB
Max Input +21 dB (REQ131)
+17 dB (REQ215)
Max Output +21 dB (REQ131)
+17 dB (REQ215)
Input Impedance 10Kohms (20K balanced)
Output Impedance 50ohms
LED Levels +17, +10, 0, -7 and -13 dB
Frequency Centers 31 ISO standard 1/3 octave +/-3% (REQ131)
15 ISO standard 2/3 octave +/-5% (REQ215)
Shelving Slope 12 dB / Octave (REQ131)
6 dB / Octave (REQ215)
Dimensions 19" x 6" x 1.75" / 48.3 x 15.2 x 4.5 cm
Weight 5 lbs / 2 kg
