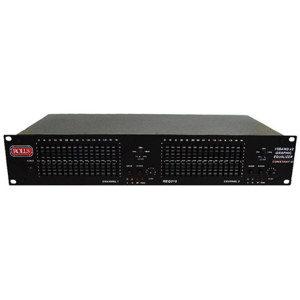

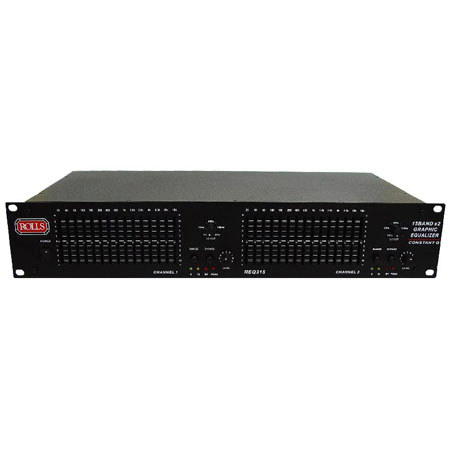

Rolls REQ315 Dual Channel 15 Band Constant Q Equalizer
Rolls

Rolls REQ315 Dual Channel 15 Band Constant Q Equalizer with XLR and 1/4 inch I/O's and Low Cut Filter

SKU: ROLREQ315 MFR: REQ315
Please note! This item will be Drop-shipped to you directly from the Manufacturer/Distributor. Estimated Delivery time is from 1 to 2 weeks.
Write a Review
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$249.99
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Rolls REQ315 graphic equalizer is intended for room equalizing or sound shaping and the approximate frequency response curve can be seen graphically by the settings of the frequency controls. Recording and broadcasting studios, sound contractors and musicians will appreciate the low noise, straightforward design and versatile signal control of the REQ series.

The equalization filters in the REQ315 are constant bandwidth (constant Q). The bandwidth of each individual filter is narrow enough to prevent unwarranted interaction between filters, yet wide enough to produce exactly the type of correction curve demanded by even the most unusual acoustic surroundings.

Key Features

  • Two channels with 15 bands of constant Q equalization each
  • XLR and 1/4" inputs and outputs
  • Low cut filters
  • 6/12 dB Boost/Cut Range switch
  • Passive by pass

Technical Specs

Equalizer: Channels 2
Equalizer: Bands 15
Equalizer: Frequency Response 20Hz - 20kHz
Equalizer: Accuracy 5% Center Frequency
Equalizer: Range +6dB or +12 dB (Switch selectable)
Inputs: Type Active Balanced/Unbalanced
Inputs: Connectors XLR, 1/4" TRS
Inputs: Impedance 12k Ohms
Inputs: Maximum Level +22 dB (Balanced), +15dB (Unbalanced)
Outputs: Type Electronically Balanced
Outputs: Connectors XLR, 1/4" TRS
Outputs: Impedance 600 Ohms
Outputs: Maximum Level +22 dB (Balanced), +15dB (Unbalanced)
RFI Filters Yes
Passive Bypass Switches Yes
Overload LED Threshold 3dB below clipping
Low Cut Filter 10 - 250Hz, 12dB/Oct.
Frequency Response 20Hz - 20kHz, +0.5dB
THD + Noise 0.01% (20Hz - 40kHz)
S/N Ratio 110dB below Max level (A weighted)
Equivalent Input Noise -95dB (20kHz noise bandwidth)
Dimensions (W x D x H) 3.5" x 19" x 8.5" / 8.89 x 48.26 x 21.59 cm
