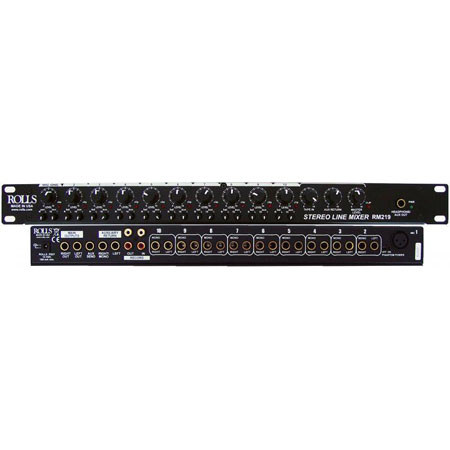

Rolls RM219 Stereo Line Mixer
Estimated Delivery time is from 3 to 5 Days.
What's Included With This Item:
- Rolls RM219 Stereo Line Mixer
- Power Supply
- Rolls 1 Year Parts and Labor Limited Warranty
The Rolls RM219 Stereo Line Mixer is a line-level mixer with nine channels of stereo 1/4" inputs, a single XLR Mic Input, a Tape input and output provided via stereo RCA jacks and a mono auxiliary send and stereo returns. Each channel has a signal Level control, a right/left Balance control, an Auxiliary level control and a Clip LED indicator.
The master section has a Tape Input level control, an Auxiliary Return level control and a Master Output volume control. The RM219 also has a Headphone Output with level control provided by the Master level controls.
|Input Impedance||Line: 10 k Ohms unbal
Mic: 10 k Ohms bal
|Phantom Power Voltage||+12 VDC|
|Output Impedance||50 Ohms bal|
|Max Input Level||+18 dBV|
|Phase Shift||< 10 deg. 20 Hz - 20 kHz|
|Connectors||1/4" and RCA|
|Max Gain||26 dB Line
26 dB Aux
|S/N Ratio||>90 dB|
|IMD (SMPTE)||< .003%|
|Self Noise||< 82 dB|
|Power||120 VAC 50-60 Hz, 15 W|
|Dimensions||19" x 1.75" x 6.5" (48cm x 4.5cm x 17cm)|
|Weight||7 lbs / 3 kg|
