Rolls

Rolls RM64 Four Zone Mixer

SKU: ROLRM64 MFR: RM64
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$250.00 List Price

Our Price

$185.00
Free Shipping
Qty:
Add to Wishlist In Stock

Protect your investment

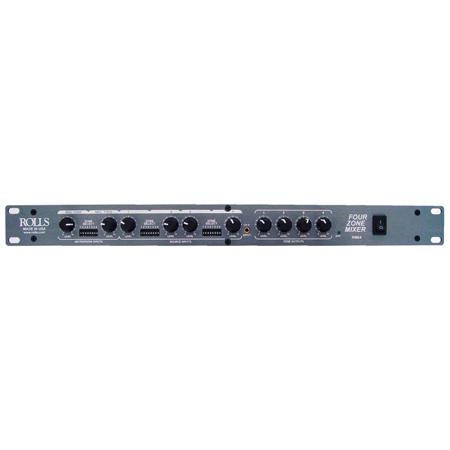

About the Rolls RM64

The Rolls RM64 Four Zone Mixer combines two paging microphones with up to four line level source inputs. Each input is switch selected to output to any combination of four zone outputs. The outputs are all balanced XLR connectors and a 1/4" Remote Volume jack provides each zone with the means for external volume control. The Microphone inputs feature automatic ducking for easy paging. The RM64 is the ideal solution for banquet rooms, offices, restaurant/night clubs, etc.

Rolls RM64 Features

  • Two Mic Inputs with Trim Controls
  • Four RCA source inputs
  • Four Balanced XLR Zone Outputs
  • Automatic paging
  • Remote Volume for each output

Rolls RM64 Specifications

Input Impedance Mic: 10 kOhms (Balanced)
RCA: 50 kOhms (Unbalanced)
Output Impedance 50 ohms (Balanced XLR)
Maximum Input Level Mic: +10dB
Source: +22dB
Phantom Power +12VDC
Inputs 2 x XLR Female
4 x RCA Stereo Pairs
Outputs 4 x XLR Male
Controls Front Panel 1 x Power Switch
4 x Zone Level Control Knobs
4 x Source Input Level Control Knobs
16 x Source Zone Selector Switches
2 x Mic Level Control Knobs
8 x Mic Zone Selector Switches
Controls Rear Panel 2 x Mic Trim Controls
2 x Phantom Power On/Off Switches
4 x Ducking Switches
Maximum Input Gain 60dB Mic
30dB Line
Signal to Noise Ratio Greater than 75dB
Total Harmonic Distortion (THD) Less than 0.3%
IMD Less than 0.3%
Common Mode Rejection Ratio 90dB
Frequency Response 20Hz - 20kHz
Power 120VAC, 50-60Hz, 15W
Dimensions (W x H x D) 19 x 1.75 x 6.5" / 483 x 45 x 165 mm
Weight 7 lbs / 3 kg
