Rolls RPQ160B 4 Band Parametric Equalizer
Rolls

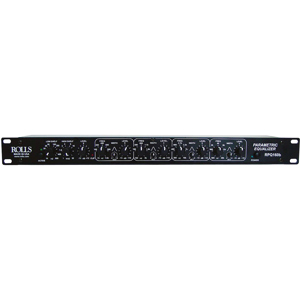

Rolls RPQ160B 4 Band Parametric Equalizer

SKU: ROLRPQ160B MFR: RPQ160B
Please note! This item will be Drop-shipped to you directly from the Manufacturer/Distributor. Estimated Delivery time is from 1 to 2 weeks.
What's Included
What's Included With This Item:
  • Rolls RPQ160B 4 Band Parametric Equalizer
  • AC Adapter
  • Rolls 1 Year Parts and Labor Limited Warranty
Write a Review
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$149.95
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Rolls RPQ160b is a 4 band parametric equalizer with high and low shelving filters and is capable of processing frequencies from 20Cy to 20KCy. This unit is for reducing room resonances, anti feedback, special effects, room flattening, etc.. The 160 also features 3 different jack types as well as balanced and unbalances ins and outs.

What's Included With This Item

  • Rolls RPQ160B 4 Band Parametric Equalizer
  • AC Adapter
  • Rolls 1 Year Parts and Labor Limited Warranty

Key Features

  • 4 Bands of parametric equalization
  • RCA, 1/4" and XLR inputs and outputs
  • Adjustable high and low shelving filters
  • T Filers, which avoid the complexity and distortion of state-variable filters
  • Great for room equalization, sound reinforcement, or home and studio recording applications

Technical Specs

Filter Type Parametric
Number of Channels Single
Inputs 1 x XLR
1 x 1/4" TRS phone
1 x RCA
Outputs 1 x XLR
1 x 1/4" TRS phone
1 x RCA
Maximum Input Level +24dB
Frequency Bands 70Hz to 1.5kHz
150Hz to 3kHz
300Hz to 10kHz
600Hz to 20kHz
Bandwidth 0.3 to 3 octaves per band
Range (Boost/Cut) -15dB to +15dB per band
Maximum Output Level +24dB
Frequency Response 16Hz to 30kHz, +/-3.0dB
Noise SNR: >90dB
Power Requirements 12VAC via supplied adapter
Specialties High-pass filter: 16Hz to 500Hz, 12dB/octave slope
Low-pass filter: 1kHz to 30kHz, 12dB/octave slope
Dimensions (W x D x H) 19 x 4 x 1.75" / 483 x 100 x 45 mm
Weight 5 lbs /2.3kg
