Edirol/Roland

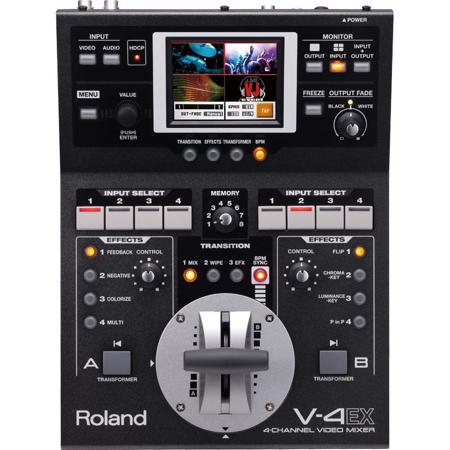

Edirol/Roland 4-Channel Digital Video Mixer with Effects, HDMI In/Out, USB Streaming, HDCP Support, Built-in Multiviewer with Touch Control

SKU: ROV4EX MFR: V-4EX
Please note: Although this item is temporarily out of stock, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,995.00 $78 per week
Free Overnight Shipping
Qty:
Add to Wishlist

About this item

The Roland 4-Channel Digital Video Mixer incorporates HDMI inputs/outputs, USB streaming, HDCP support, built-in touch multi-viewer and audio embedding. These features are added to the strong primary feature set including built-in effects and unique user interface that has made the V-4 one of the besting selling video mixers of all time.

All-in-One SD video mixer with HDMI in/out, USB streaming out and built-in multiviewer with touch control
The Roland V-4EX versatility and unique features make it suitable for many applications, including clubs, concerts, worship, events, meetings, trainings, weddings, education and sporting events. The V-4EX's sleek and compact design lends itself to portable applications as well as permanent installations when size and space are considerations.

In addition to a number of powerful video effects, the user interface incorporates dial controls for effects on each bus and master output dial. The innovative design incorporates a video switcher, audio embedding, preview monitor and streaming-ready USB output all in a single unit. Inputs one to three feature composite (BNC) or HDMI while input four accepts HDMI, RGB/Component or S-video. The output features scaled-up HDMI, RGB/component, or SD composite with an additional HDMI output for external preview monitor. The Roland V-4EX features a stereo RCA audio input allowing you to embed audio into the HDMI outputs and USB stream, which are especially useful for web streaming and recording applications. As a USB Video/Audio class device, web streaming is effortless by simply connecting to a computer running a live streaming service. You can also record the output using Roland's free Video Capture for Windows software or by using Quicktime on a Mac.

Designed to be a live production switcher and web streaming device, the Roland V-4EX features audio embedding, built-in audio mixer with up to 4 frames delay to "lipsync" your video source. It supports HDCP video allowing you to mix copyright protected material such as game consoles and Blu-ray content in your live production. HDMI inputs one to three accept video resolutions up to 480p/576p and HDMI input four accepts resolutions up to 1080p and RGB up to WUXGA (1920x1200). Although internal processing is SD-based, the output can be scaled up to 1080p or 1920x1200.

What's Included With This Item

  • Roland 4-Channel Digital Video Mixer
  • AC Adaptor
  • Power Cord
  • 2 x RCA-BNC Conversion Plug
  • Owner's Manual
  • Roland 1 Year Limited Warranty

Technical Specs

Video Processing 4:2:2 (Y/Pb/Pr), 8 bits (Internal Processing: 480/59.94p when set to NTSC, 576/50p when set to PAL)
Audio Processing Sampling Rate: 24 bits/48kHz, 2 ch
Input Formats: HDMI Video INPUT 1 to 3: requires 720x480/59.94p (when set to NTSC), 576/50p (when set to PAL)
Input Formats: HDMI and Component Video INPUT 4: 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p (when set to NTSC)
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p (when set to PAL)
Input Formats: HDMI Audio INPUT 1to 4: Linear PCM, 24 bits/48kHz, 2 ch
Input Formats: RGB INPUT 4: 640 x 480/60Hz, 800 x 600/60Hz, 1024 x 768/60Hz, 1280 x 768/60Hz, 1280 x 1024/60Hz, 1366 x 768/60Hz, 1400 x 1050/60Hz, 1600 x 1200/60Hz, 1920 x 1200/60Hz
Input Formats: Composite Video INPUT 1 to 4: NTSC, PAL
Input Formats: S-Video INPUT 4: NTSC, PAL
HDMI and RGB/Component Video (OUTPUT) 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200
HDMI Audio (OUTPUT) Linear PCM, 24 bits/48kHz, 2 ch
Output Formats: Composite Video NTSC, PAL
Output Formats: Preview Video (PVW OUT) 480/59.94p when set to NTSC, 576/50p when set to PAL
Output Formats: Preview Audio (PVW OUT) Linear PCM, 24 bits/48kHz, 2 ch
Output Formats: USB Video 720 x 480 when set to NTSC, 720 x 576 when set to PAL, Motion JPEG
Output Formats: USB Audio Linear PCM, 16 bits/48kHz, 2 ch
Input Connectors Video:
HDMI: Type A (19 pins) x 4 (INPUT 1to 4)
RGB/Component: HD DB-15 type x 1(INPUT 4)
Composite: BNC type x 4 (INPUT 1 to 4)
S-Video: 4-pin mini DIN type x 1 (INPUT 4)
Audio: RCA-pin type x 1pair (AUDIO IN)
Output Connectors Final Output:
HDMI: Type A (19 pins) x 1 (OUTPUT)
RGB/Component: HD DB-15 type x 1 (OUTPUT)
Composite: BNC type x 1 (OUTPUT)
Preview Output: HDMI: Type A (19 pins) x 1 (PVW OUT)
Other Connectors: MIDI: 5 pins DIN type x 2 (IN, OUT/THRU)
USB: B type x 1 (for streaming and remote control)
Signal Level Impedance RGB/Component:
Signal Level: 1.0 Vp-p (luminance), 0.7 Vp-p (chroma)
Impedance: 75 Ohms
Composite:
Signal Level: 1.0 Vp-p
Impedance: 75 Ohms
S-Video:
Signal Level: 1.0 Vp-p
Impedance: 75 Ohms
Analog Audio:
Nominal Input Level: - 10 dBu
Maximum Input Level: + 8 dBu
Impedance: 15 kOhms
Display Graphic Color LCD, 320 x 240 dots, touch panel
Video Effects Transition: Mix, Cut, Wipe (259 patterns)
Composition/Filter: Picture in Picture, Luminance Key, Chroma Key, Strobe, Negative, Colorize, Feedback, Emboss, Multi, Mirror etc. (148 types)
Others: Output Fade, Freeze
Power Supply AC adaptor
Current Draw 2A
Dimensions (H x W x D) 105 x 225 x 296mm (4.13 x 8.85 x 11.65")
Weight 5.73lbs (2.6kg)
