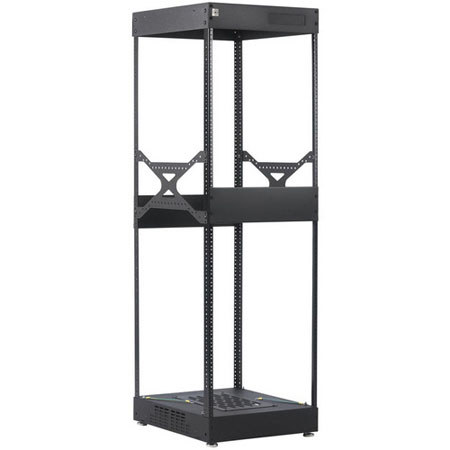

Raxxess S1 Knock Down Rack, 12U, 28" Deep, Black

See all Raxxess items
SKU: RXNS1F1228 MFR: NS1F1228

About Raxxess S1 Knock Down Rack

The Raxxess S1 Knock Down Rack (12U / 28" Deep) is designed with self-supporting rack rails and an inherent base that holds the rack rail firmly during assembling, allowing a single individual to assemble it rather effortlessly. Capable of withstanding a load capacity of 500 lbs (226.79 kg), the rack is ideal for holding rack-mountable equipment like cabinets and chassis.

A covered venting in the bottom panel offers additional space to mount components and can also be easily detached for cable routing. Additionally, laser cut knockouts are designed to accept conduits and cable connectors. Punched side braces can be used to attach additional rack rails or to tie cables. In addition, the rack rails can be customized depending on your installation.

For quick cooling, a built-in blank panel covering the top of the rack prevents warm exhaust air from circulating to the front of the cabinet. Included floor levelers ensure the rack stands at level on the surface.

Raxxess S1 Knock Down Rack Features

  • S1 racks are designed with a base that holds the rack rail in place during assembly to greatly simplify and speed up the assembly process
  • Covered vented bottom panel provides additional space for mounting components, but can be easily removed for cable entry
  • Optional branding panel keeps your brand out front of the rack (will be concealed if a door is added to the rack)
  • Laser cut knockouts make conduit and cable installation a breeze
  • Side braces are punched to accept additional rack rail or can be used as a place to land cable ties
  • Dual 3U panel in the top works with any standard 3U vent or fan panel - rack is delivered with blank panels pre-installed covering the top
  • Rack rails can be field cut to length to shorten rack if required by unexpected changes to installation space

Raxxess S1 Knock Down Rack Specifications

UL Listed
Assembly Required
Wrinkle Powder Coat
Racking Height
Weight Capacity
500 lbs (226.79 kg)
Usable Depth
27.6" (70.10cm)
Exterior Height with Casters
30" (76.2cm)
Dimensions (D x H x W)
Exterior: 28 x 28.5 x 19.25" (71.12 x 72.39 x 48.89cm)
