Raxxess S1 Knock Down Rack without Rack Rail, Racking Height: up to 41U, 28" Deep, Black

Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$319.20 $13 per week
Free Expedited Shipping
Add to Wishlist

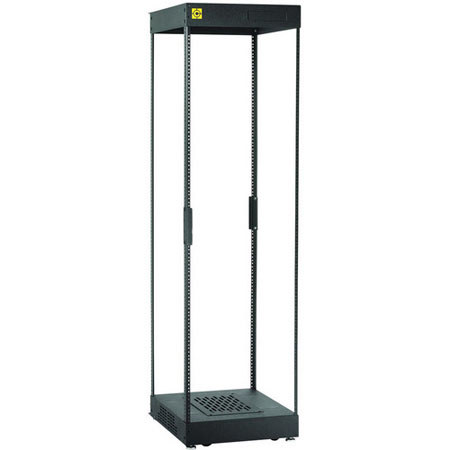

About the Raxxess S1 Rack

The Raxxess S1 Knock Down Rack without Rack Rail (28" Deep) is designed for easy and quick assembly and has a load capacity of 500lbs (226.79 kg). This series of racks allows you to choose the rack and the rails separately, according to your preference. An inherent base holds rack rails (optional) in place during assembly, simplifying and speeding up the process.

A covered venting in the bottom panel offers additional space to mount components and can also be easily detached for cable routing. Additionally, laser cut knockouts are designed to accept conduits and cable connectors.

Punched side braces can be used to attach rack rails or to tie cables. In addition, rack rails can be customized depending on your installation space. For quick cooling, a built-in blank panel covering the top of the rack prevents warm exhaust air from circulating to the front of the cabinet. Included floor levelers ensure the rack stands at level on the surface.

Raxxess S1 Rack Includes

  • Raxxess S1 Knock Down Rack
  • Floor Levelers
  • Raxxess Warranty

Raxxess S1 Rack Features

  • S1 racks are designed with a base that holds the rack rail in place during assembly to greatly simplify and speed up the assembly process
  • Covered vented bottom panel provides additional space for mounting components, but can be easily removed for cable entry
  • Optional branding panel keeps your brand out front of the rack (will be concealed if a door is added to the rack)
  • Laser cut knockouts make conduit and cable installation a breeze
  • Side braces are punched to accept additional rack rail or can be used as a place to land cable ties
  • Dual 3U panel in the top works with any standard 3U vent or fan panel - rack is delivered with blank panels pre-installed covering the top

Raxxess S1 Rack Specifications

Finish Wrinkle Powder Coat
Material Steel
Racking Height Up to 41U
Weight Capacity 500lbs (226.79 kg)
Assembly Required Yes
Usable Depth 27.6" (70.10cm)
Dimensions (D x W) Exterior: 28 x 19.25" (71.12 x 48.89cm)
