Sanus Systems CFR2136 36U Component Foundations 70.5" Tall AV Rack

Please note: This item is currently back-ordered by the manufacturer. Although we have no estimated time of arrival for this item, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

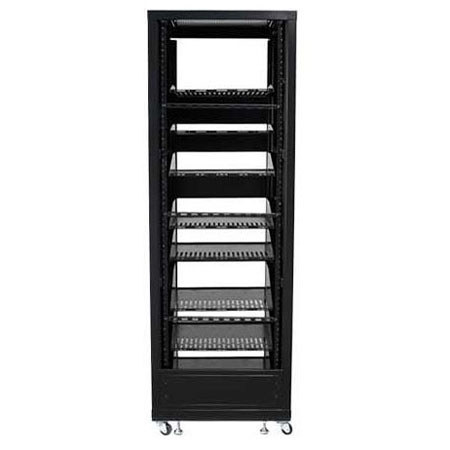

About the Sanus Systems CFR2136

The Sanus Systems CFR2136 36U Component Foundations 70.5" Tall AV Rack can support up to 800 lb of AV gear. It comes pre-assembled with blanking panels and vented shelves, which include back stops to ensure AV equipment does not move during use. Quick-release back and side panels allow complete and total access to components and wiring.

The rack has two 3U cut-out openings on both top and bottom of the rack as well as a removable 3U panel that can be located above or below the rear rack door for added venting or active cooling flexibility. Swivel casters and adjustable feet allow mobility and stable positioning and cooling vents on the top and bottom of the rack ensure all equipment stays at the ideal temperature. The CFR2136 comes with additional accessories to gang racks together and to make the side panels lockable.

Sanus Systems CFR2136 Includes

  • Sanus Systems CFR2136 36U Component Foundations 70.5" Tall AV Rack
  • 4 x Casters
  • 4 x Adjustable Feet
  • 2 x 1U Shelf
  • 2 x 2U Shelf
  • 3 x 3U Shelf
  • 2 x 1U Blanking Panel
  • 2 x 2U Blanking Panel
  • 2 x 3U Blanking Panel
  • 3 x Tie Bar
  • Sanus Systems Warranty

Sanus Systems CFR2136 Features

  • Strong and sturdy construction with heavy-gauge welded steel
  • Customizable rack includes adjustable shelves, rails and multiple 3U removable panels
  • Quick-release removable side and back panels allow for easy access to components
  • Rack comes pre-assembled with shelves and blanking panels to simplify ordering and installation
  • Lockable tempered glass front door can be placed on left or right of rack for added flexibility during installation
  • Convection cooling system allows warm air to escape through top as cooler air is drawn in through bottom of rack, keeping AV gear at the proper temperature

Sanus Systems CFR2136 Specifications

Rack Spaces 36U
Shelf Dimensions (W x H x D) 1U Shelf: 19.00 x 1.75 x 18.20" (48.26 x 4.45 x 46.23 cm)
2U Shelf: 19.00 x 3.50 x 18.20" (48.26 x 8.89 x 46.23 cm)
3U Shelf: 19.00 x 5.25 x 17.90" (48.26 x 13.34 x 45.47 cm)
Dimensions (W x H x D) With casters: 23.62 x 70.50 x 23.62" (59.99 x 179.07 x 59.99 cm)
Without casters: 23.62 x 67.70 x 23.62" (59.99 x 171.96 x 59.99 cm)
Load Capacity Overall Load capacity: 800.00 lb (363.64 kg)
1U Shelf: 30.00 lb (13.64 kg)
2U Shelf: 50.00 lb (22.73 kg)
3U Shelf: 80.00 lb (36.36 kg)
Weight 177.70 lb / 80.77 kg
