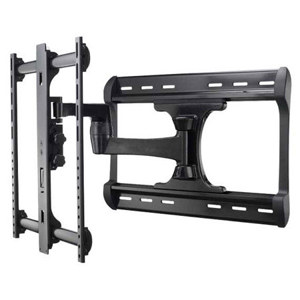

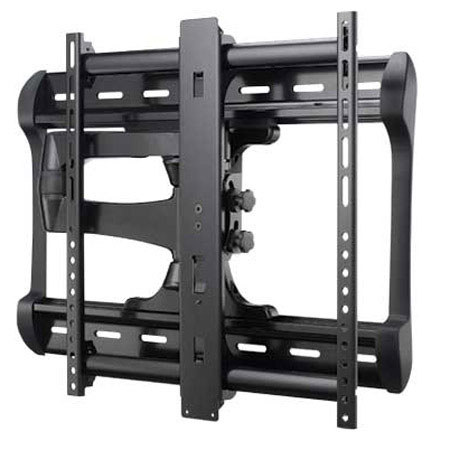

The Sanus VisionMount HDpro Series LF228 full-motion mount for 37"- 65" flat-panel TV's up to 130 lbs. was engineered with the custom installer in mind. Its pre-assembled interface and strong, ultra-light extruded aluminum wall plate allows the easiest and quickest installation possible.
The QuickConnect system allows the mounting head to snap onto the arm assembly with one easy movement and unlock with the push of a button. ProSet post-installation height and leveling adjustments ensure TV's are always perfectly positioned after mounting.
The LF228 arm assembly shifts left and right on the wall plate so the TV is always centered, even if wall studs are not. And the amazing FollowThru in-arm cable channel protects and completely conceals all cables without inhibiting movement, even through the elbow.
Its strong extension arm allows large TV's to extend, retract, tilt and swivel up to 28" from wall with ease. Virtual Axis tilting technology allows effortless viewing angle adjustment with the touch of a finger. Universal mounting pattern fits virtually any 37"-65" flat-panel TV up to 135 lbs.
|Tilt||5.00° / - 15.00°|
|Swivel||170.00° / - 170.00°|
|Roll||5.00° / - 5.00°|
|TV Size Range||37.00" - 65.00" / 93.98cm - 147.32cm|
|Maximum TV Weight||135.00 lb / 61.36 kg|
|TV Diagonal Min/Max||37.00" - 65.00" / 93.98cm - 165.1cm|
|Width||31.00" / 78.74 cm|
|Height||23.75" / 60.33 cm|
|Depth Min||3.50" / 8.89 cm|
|Depth Max||28.00" / 71.12 cm|
|Warranty||Sanus 10 years limited warranty|
