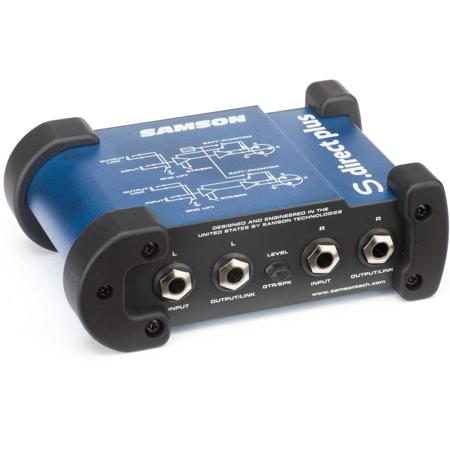

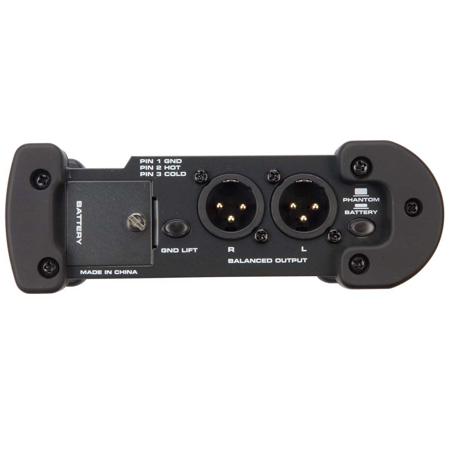

Samson S-Direct Plus Active Stereo Direct Box with Ground Lift Switch
The Samson S-Direct Plus is an active, phantom powered stereo direct box. It's like having two direct boxes in one, perfect for keyboard players or any instrument with multiple outputs. Unlike a passive DI where the frequency response of the signal can be altered depending on the connected impedance, an active DI buffers the input signal with an amplifier. This assures that the sound source will reach the mixer balanced and noise-free.
The input-buffering amplifier also ensures clean, pure and powerful sound when using extremely long cables. The DI can be powered either from the phantom power of a mixer or by using a 9 V battery.
|Frequency Response||5-35 kHz, -3 dB|
|Noise Level (22-22kHz, Input Shorted)||-104 dBu|
|THD + N (10 Hz -22 kHz)||0.013% typ.@1VRMS,1kHz|
|Input Impedance||GTR: > 1 Meg. Ohm
SPK: 10 k Ohm
|Max. Input Level (1% THD)||+8.1 dBu ( 9v. Batt.)
+11.3 dBu (48v. Phantom)
|GTR/SPK Input||1/4= Phone Jack, unbalanced|
|OUTPUT/LINK||1/4= Phone Jack, unbalanced|
|Balanced Output||XLR Connector, balanced|
|Phantom Power||24-48 VDC|
|Dimensions (W x D x H)||5.65" x 4.13" x 2" / 14.3 x 10.4 x 5.08 cm|
|Weight||15 oz / 425 g (with fuse)|
