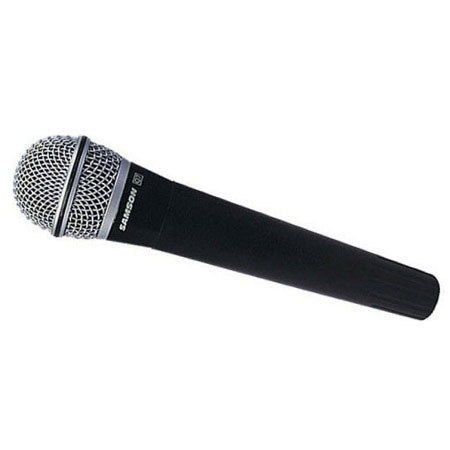

Samson HT5 Handheld Microphone Transmitter with Q7 Dynamic Microphone Head for Stage 5/Stage 55 Wireless, Channel 5/190.6 MHz

SKU: SASW05HHQ75 MFR: SW05HHQ7-5

Our Price

$67.50
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

List Price: $89.99

Availability: In Stock Online In Stock Online - Usually ships within 1-2 Days

Free Shipping

See all shipping options

Ways To Save

More Buying Options

Product Highlights

  • Q7 Super-Cardioid Capsule
  • Separate On/Off & Mute Switches
  • Extended Battery Life
  • Dynamic
Samson HT5: Picture 1 regular $67.50

About Samson HT5

The Samson HT5 Handheld Microphone Transmitter (Channel 5/190.6 MHz) is light weight yet rugged and features the Q7 neodymium super-cardioid head. The neodymium magnet provides high output gain and low noise while the super-cardioid polar pattern provides a focused pick up area which reduces residual noise and feedback. The HT5 microphone transmitter will provide up to 10 hours of operation with just a single 9-volt battery. An Audio On/Off switch is separate from the power switch for added control without any accidental power downs.

Samson HT5 Features

  • Q7 Super-Cardioid Capsule: The HT5 is available with a variety of microphone heads. This version includes the Samson Q7 super-cardioid, neodymium head. The neodymium magnet provides high output and minimal noise while the super-cardioid polar pattern provides a focused pick up and reduces feedback
  • Separate On/Off & Mute Switches: The HT5 handheld transmitter features an Audio On/Off switch that is separate from the actual power switch. This eliminates accidental power down
  • Extended Battery Life: The transmitter is powered with a single 9-volt battery for up to 10 hours

Samson HT5 Specifications

Number of Channel
Single Channel Operation
Transmitter: Frequency Range
Channel 5/190.6 MHz
Transmitter: Transmission Mode
Frequency modulation, 80KF3E, 15 kHz peak deviation
Transmitter: OSC System
Crystal controlled, x12 multiplication
Transmitter: RF Power
20 mW
Transmitter: Operating Range
300' (91.4m)
Transmitter: Frequency Stability
± 10 ppm
Transmitter: Approvals
Complies with ETS 300 422 and FCC Part 74
Transmitter: Antenna Type
Internal
Transmitter: Audio Frequency Response
40 Hz to 15 kHz ±3 dB
Transmitter: Pre-Emphasis
50 uSec
Transmitter: Noise Reduction System
NE571 based compandor
Transmitter: Signal To Noise Ratio
> 100 dB
Transmitter: Maximum Input Level
0 dBv (ST5), -20 dBv (VH3)
Transmitter: T.H.D.
< 1% at 1 kHz
Transmitter: Current Consumption
34 mA (typical)
Transmitter: Battery Life
MN1604 9-volt alkaline: 6 hours (typical)
Transmitter: Operating Temperature
-10 to +55 degrees C
Transmitter: Controls
Power On/Off, Audio On/Off, Level Control (Trimpot)
Transmitter: LED Indicator
Battery high/medium/low
Q7 Mic Head: Type
Dynamic
Q7 Mic Head: Frequency Range
80Hz - 12kHz
Q7 Mic Head: Polar Pattern
Super Cardioid
Q7 Mic Head: Output Impendence
200Ohm
Q7 Mic Head: Sensitive
-54dBV/pa (2.2 mv/pa)
Q7 Mic Head: Connector
3-pin Gold Plated Balanced XLR Male
Dimensions
Transmitter (W x H): 37 x 233mm (1.46 x 9.17")
Q7 Mic Head: (Dia x L): 2.1 x 6.1" (5.3 x 15.5cm)
Weight
Transmitter: 7.1oz (200g)
Q7 Mic Head: 12oz (370g)
Mfr #
SW05HHQ7-5
SKU
SASW05HHQ75
