About the Samson SAXP308I

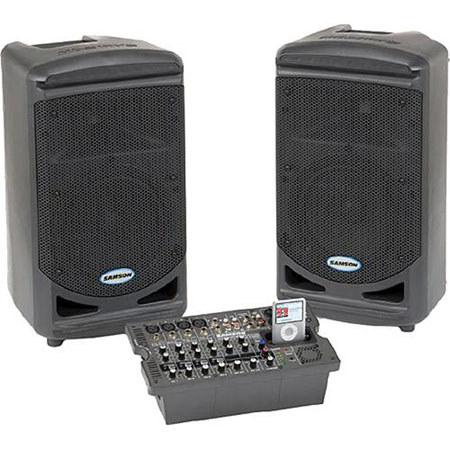

The XP308i from Samson is a compact and portable PA system that includes two 2-way speakers and an 8-channel mixer. Designed with mobility in mind, all of the system components connect together into a single case for terrific portability. Each of the speakers features an 8" woofer and a 1" titanium tweeter, housed inside a durable vented enclosure. The removable 8-channel mixer features a powerful and efficient 300W Class-D amplifier for powerful sound reproduction. It offers 4 mic/line inputs capable of delivering phantom power, as well as 2 stereo inputs. An integrated iPod dock lets you easily drop in an iPod for playing back pre-recorded material. Dual 3.5mm outputs provide convenient monitoring via headphones or additional speakers. RCA outputs let you connect additional speakers or a recorder.

Other useful features of the XP308i include separate bass and treble controls for each input, a music/speech switch for setting system EQ and an internal effects processor, which can add digital reverb to any mic channel. A 6-segment LED meter with a limit indicator makes it easy to monitor levels at a glance.

Samson SAXP308I Includes

  • Samson XP308i Portable iPod PA System
  • 2 x Speakers
  • 2 x 1/4" 20 foot speaker cables (20 Gauge)
  • Mixer
  • Power Cable
  • Samson Warranty

Samson SAXP308I Features

  • Compact PA system with dual 2-way speakers, mixer and 300-watt amplifier
  • Practical design allows all pieces to connect into a single, portable case
  • Internal 2 x 150-watt lightweight Class D amplifier
  • 8-inch woofers in 2-way vented enclosures
  • 1-inch titanium tweeter in custom horn with 60 x 90 degree coverage
  • 8-channel removable mixer with four mic/line inputs, two stereo inputs and phantom power
  • Bass and treble control on mixer's channel inputs
  • Monitor output on two 1/8-inch jacks allows connection to external powered monitors
  • Internal effects processor to add digital reverb to any microphone channel
  • Built-in iPod dock
  • Music/Speech switch to set overall system equalization
  • 6-segment level meter with limit indicator
  • RCA record outputs to connect to external recorder

Samson SAXP308I Specifications

Input Impedance CH Mic: 3.6Kohms / 7.5Kohms
CH Line: 3.6Kohms / 7.5Kohms
Stereo Input: 10Kohms
Nominal Load Impedance CH Mic: 50-600ohms / 600ohms
CH Line: 50-600ohms / 600ohms
Stereo Input: 600ohms
Rated Input Level CH Mic: -36dBu / -26dBu
CH Line: -6dBu / +4dBu
Stereo Input: -10dBu
Connector Type CH Mic: XLR Type Balanced /Phone Jack(TRS)T=Hot R=Cold S=GND
CH Line: XLR Type Balanced / PhoneJack(TRS)T=Hot R=Cold S=GND
Stereo Input: Unbalanced Phone Jack, RCA pin Jack
Output Impedance MONITOR L/R: 1Kohms
Rec Out: 600 ohms
Speaker Output: 100 ohms
Nominal Load Impedance MONITOR L/R: 600ohms
Rec Out: 10Kohms
Speaker Output: 8 ohms
Rated Output Level MONITOR L/R: +4dBu
Rec Out: -10dBu
Speaker Output: 110W
Connector type MONITOR L/R: Phone Jack (TRS) Impedance balanced [T:hot; R:Cold; S:groud]
Rec Out: RCA pin Jack
Speaker Output: Phone Jack
Maximum Output Level (0.5% T.H.D at 1KHz +22dBu(MONITOR L/R) @10Kohms +14dBu(REC) @10Kohms More than 110W(SPEAKER) @8ohms
T.H.D <0.1% @+14dB 20Hz-20KHz (MONITOR L/R,REC L/R) @10Kohms
<1% @ 110W 20Hz-20KHz (SPEAKER OUTPUT) @8ohms
Frequency Response 20Hz-20KHz,+1/-2dB(MONITOR L/R,REC L/R,SPEAKER OUTPUT) @10Kohms
Hum and Noise Input GAIN -112dBu: equivalent input noise ( Rs=150ohms )
-90dBu: Residual noise (MONITOR L/R) all Level at Minimum
-80dBu: MONITOR VR at nominal level and all channel Level Minimum
-70dBu: MONITOR VR at Maximum level and all channel Level Minimum
Maximum Voltage Gain 64dB MIC(XLR) IN TO MONITOR L/R
54dB MIC(PHONE TRS) IN TO MONITOR L/R
34dB LINE(XLR) IN TO MONITOR L/R
24dB LINE(PHONE TRS) IN TO MONITOR L/R
28dB ST LINE IN TO MONITOR L/R
38dB MIC(XLR) IN TO REC L/R
Crosstalk (at 1KHz) -70dB between input channels
-70dB between input/output channels (CH INPUT)
SPEECH/MUSIC 75Hz, 18dB/Octave
Input Channel Equalization HIGH:10KHz shelving ± 15dB
LOW:100Hz shelving ± 15dB
REVERB indicators Within
LED Meters 5-point LED, SPEAKER OUT
LIMITER Indicators LIMITER:An indicator for master turns on when the speaker output below clipping
Phantom Power +15V DC
Power Source/Power Consumption AC INPUT 100V-240V,50/60Hz 360W
Dimensions (W x D x H) 20.1" x 10.6" x 19.1" / 510 x 270 x 485 mm
Weight 37.43 Ibs / 16.8 Kg
