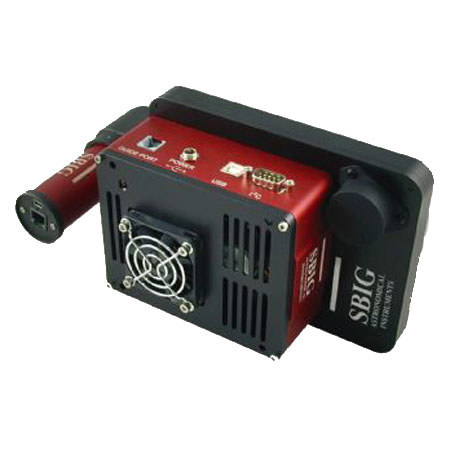

SBIG STF-8300M Self Guiding Package with Mono ST-i, 3326x2504 Pixel Array, 10 MP/Sec Digitization Rate, USB 2.0 Interface,

SBIG
SKU: SB801206100 MFR: 80-12061-00

About SBIG STF-8300M

The SBIG STF-8300M is a second-generation camera using the popular KAF-8300 CCD. Integrated 5-position and 8-position filter wheels are available as well as a new integrated, low profile, wide field off-axis guiding accessory that, along with the ST-i, allows the STF-8300 to act as a self-guiding camera. SBIG offers several packages that include the most popular configurations of these accessories for extra savings when purchased together.

The STF-8300M also continues the SBIG tradition of a user rechargeable desiccant plug and even-illumination, photometric shutter and user-selectable automatic-artifact-repair or raw images for total control in post processing. SBIG's mechanical shutters have been designed for highly reliable, even illumination, of the sensor even at short exposures. Even illumination is especially critical when taking flat fields with exposures of less than a second or even several seconds. This is very common when taking sky flats.

The STF-8300M camera with user-selectable automatic image processing. These 30 second dark frames were taken at room temperature to accentuate the number of warm pixels. The first frame is unprocessed, the second frame has a medium filter and the third frame the most aggressive filter. Each shows fewer bright pixels and each has correspondingly lower noise in the image. The user can select from eight levels of filter strength to suit his needs.

The STF-8300M can be paired with the new low profile, wide field Off-Axis Guider (OAG), which allows self-guiding. The OAG is designed with a 7-element relay lens system that places the position of the guide camera to the side of the main camera and filter wheel, which minimizes the impact on overall back focus. The same lens system also acts as a 0.7X focal reducer that doubles the field of view of the guide camera compared to a typical off-axis system. The OAG adds only 3/4" (19 mm) back focus to the camera and filter wheel. The guide camera can also be rotated in 90-degree increments. The OAG can be used on both mono and color cameras (with appropriate adapter) and is 100% backward compatible with all ST-8300 cameras.

SBIG STF-8300M Features

  • 10 Megapixel/second digitization rate for faster image download (Full frame < 1 sec.)
  • Faster sampling speed and full frame image buffer, resulting in higher quality images with fewer artifacts and cleaner FFT's
  • Less post processing required (and with the extra low dark current of 8300 CCD casual imagers may not need to perform any post processing)
  • User-selectable choice of automatic image artifact repair for cleaner images or raw images for total control in post-processing

SBIG STF-8300M Specifications

CCD
Kodak KAF-8300
Pixel Array
3326 x 2504 pixels
CCD Size
17.96 x 13.52 mm
Total Pixels
8.3 Million
Full Well Capacity
-25,500 e-
Dark Current
0.02e-/p/s @ -10C
Antiblooming
1000X
Shutter
Even-Illumination, Mechanical
Exposure
0.09 to 3600 seconds
A/D Converter
16 bit
Gain
0.37e-/ADU
Read Noise
-9.3e-;
Binning Modes
1x1, 2x2, 3x3, etc. - 15x15
Digitization Rate
10 Megapixels / Second
Full Frame Download
Less than 1 second
Cooling
-40C max. from ambient
Temp. Regulation
+/- 0.1 degree
Power
12VDC, 3 amps max
Interface
USB 2.0
Computer Compatibility
All Windows O/S, 32-bit and 64-bit, Mac OSX
Mounting
T-thread, 2" Nosepiece
Backfocus
0.69 inches (17.5 mm)
Dimensions
Camera Body Size: 2 x 4 x 5" (50.8 x101.6 x127 mm)
Weight
1.8 lbs (0.82 kg)
Mfr #
80-12061-00
SKU
SB801206100
