SBIG STT-3200ME Astronomy Camera with Standard Filter Wheel Package, 2184x1510 Pixel Array, 16-bit A/D Converter

SBIG
SKU: SB801224000 MFR: 80-12240-00
Made in USA

Our Price

$7,412.56
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

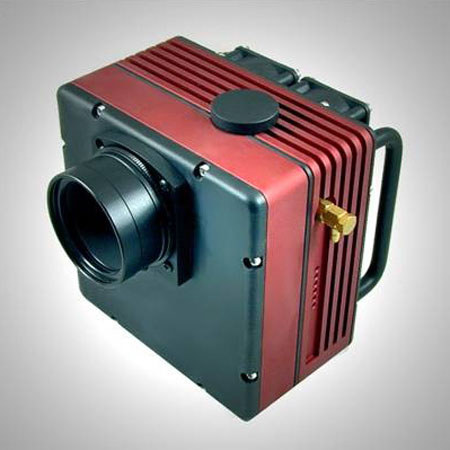

SBIG STT-3200ME: Picture 1 regular $7,412.56

About SBIG STT-3200ME

The SBIG STT-3200ME Astronomy Camera with Standard Filter Wheel Package, Autoguider and Filter Wheel fully integrated with guiding CCD in front of the filters! No separate guider required. New MicronPrecision filter wheel provides unmatched flat field accuracy for high end imaging and high precision photometry. It has a lightning fast downloads { 1 second full-frame. This camera has a Superior two-stage cooling to -55 deg C ambient with air only.

SBIG STT-3200ME Features

  • Built-in frost detection
  • User Selectable Internal Image Processing

SBIG STT-3200ME Specifications

CCD
Kodak KAF-3200ME
Pixel Array
2184 x 1510 pixels at 9u
CCD Size
14.85x10.26mm
Total Pixels
3.2 Million
Full Well Capacity
55000 e-
Dark Current
0.06e-/pixel/sec at -20C
Antiblooming
NABG Only
Shutter
Mechanical, Even-illumination
Exposure
0.12 to 3600 seconds, 10ms
Correlated Double Sampling
Yes
A/D Converter
16 bit
Gain
0.8e-/ADU (1.2e- binned)
Read Noise
-10e- rms
Quantum Efficiency
-90% Peak, -85% at H-a
Binning Modes
1x1, 2x2, 3x3, 9x9, x n
Digitization Rate
8.33 Megapixels / Second
Full Frame Download
Less than 1 second
Max Cooling Delta
-55C with air only
Temp. Regulation
±0.1deg.C
Power
12VDC at 3. 5 amps max
Interface
USB 2.0 and Ethernet
Computer Compatibility
Windows 32 / 64 bit Mac OSX 3rd party Linux
Mounting
T-Thread, 2" nosepiece
Backfocus
0.69" / 17.5mm
Dimensions
4.9x4.9x2.9" / 124.46x124.46x73.6cm
Weight
2.7lbs / 1.22kg
Mfr #
80-12240-00
SKU
SB801224000
