SBIG

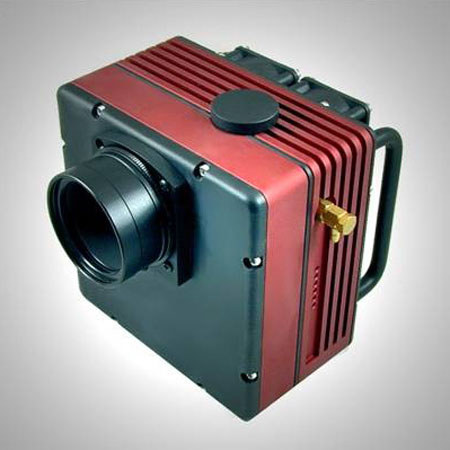

SBIG STT-3200ME Astronomy Camera with Self-Guiding Filter Wheel Package, 2184x1510 Pixel Array, 16-bit A/D Converter

SKU: SB801224100 MFR: 80-12241-00
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$9,190.00 List Price

Our Price

$8,401.56
Free Shipping
Qty:

Add to Wishlist

About the SBIG STT-3200ME

The SBIG STT-3200ME Astronomy Camera with Self-Guiding Filter Wheel Package has a new design with everything the astroimager could want in a camera. It features fast, low noise digitization and a full frame image buffer. At 10MHz the STT downloads a full frame, low-noise 8300 frame in less than a second. It also has superior two-stage cooling to -55C below ambient with air only. Its also water cooling-ready for additional cooling without having to buy a replacement back plate or other additional accessory. Its ready to go out of the box.

A multitude of advanced features such as built-in frost detection, RBI pre-flash, power management system, Ethernet and USB 2.0, high accuracy temperature control, sapphire window and user selectable internal image processing put this camera in a league of its own. The STT uses the same efficient pin fin heat sink design as the STX series cameras to achieve the most efficient use of space and weight while maximizing the cooling capability of the camera. This type of heat sink is more expensive than typical parallel fin heat sinks, but the results speak for themselves. The STT prototypes achieved an average temperature delta greater than -50C in 5 minutes and a max of -57C in less than ten.

SBIG STT-3200ME Includes

  • SBIG STT-3200ME Camera
  • FW8GS-STT
  • Self-Guiding 8-Position Micron-Precision Filter Wheel
  • SBIG 2 Years Warranty

SBIG STT-3200ME Features

  • Built-in frost detection
  • User Selectable Internal Image Processing

SBIG STT-3200ME Specifications

CCD Kodak KAF-3200ME
Pixel Array 2184 x 1510 pixels at 9u
CCD Size 14.85x10.26mm
Total Pixels 3.2 Million
Full Well Capacity 55000 e-
Dark Current 0.06e-/pixel/sec at -20C
Antiblooming NABG Only
Shutter Mechanical, Even-illumination
Exposure 0.12 to 3600 seconds, 10ms
Correlated Double Sampling Yes
A/D Converter 16 bit
Gain 0.8e-/ADU (1.2e- binned)
Read Noise -10e- rms
Quantum Efficiency -90% Peak, -85% at H-a
Binning Modes 1x1, 2x2, 3x3, 9x9, x n
Digitization Rate 8.33 Megapixels / Second
Full Frame Download Less than 1 second
Max Cooling Delta -55C with air only
Temp. Regulation ±0.1deg.C
Power 12VDC at 3. 5 amps max
Interface USB 2.0 and Ethernet
Computer Compatibility Windows 32 / 64 bit Mac OSX 3rd party Linux
Mounting T-Thread, 2" nosepiece
Backfocus 0.69" / 17.5mm
Dimensions 4.9x4.9x2.9" / 124.46x124.46x73.6cm
Weight 2.7lbs / 1.22kg
