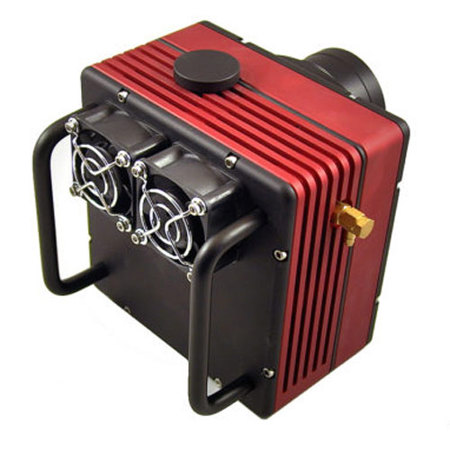

SBIG STT-1603ME Astronomy Camera with Self-Guiding Filter Wheel Pack, 1536x1024 Pixel Array, 16-bit A/D Converter

SKU: SB801225100 MFR: 80-12251-00
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$6,690.00 List Price

Our Price

$5,929.06 $231 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About the SBIG STT-1603ME

The SBIG STT-1603ME Astronomy Camera with Self-Guiding Filter Wheel Pack has a new design with everything the astroimager could want in a camera. It features fast, low noise digitization and a full frame image buffer. At 10MHz the STT downloads a full frame, low-noise 8300 frame in less than a second. It also has superior two-stage cooling to -55C below ambient with air only. Its also water cooling-ready for additional cooling without having to buy a replacement back plate or other additional accessory. Its ready to go out of the box.

A multitude of advanced features such as built-in frost detection, RBI pre-flash, power management system, Ethernet and USB 2.0, high accuracy temperature control, sapphire window and user selectable internal image processing put this camera in a league of its own. The STT uses the same efficient pin fin heat sink design as the STX series cameras to achieve the most efficient use of space and weight while maximizing the cooling capability of the camera. This type of heat sink is more expensive than typical parallel fin heat sinks, but the results speak for themselves. The STT prototypes achieved an average temperature delta greater than -50C in 5 minutes and a max of -57C in less than ten.

SBIG STT-1603ME Includes

  • SBIG STT-1603ME Camera
  • FW8GS-STT
  • Self-Guiding 8-Position Micron-Precision Filter Wheel
  • SBIG 2 Years Warranty

SBIG STT-1603ME Features

  • Camera, Autoguider and Filter Wheel now fully integrated with tracking sensor in front of filters! No separate guider required!
  • New Micron-Precision 2" filter wheel provides unmatched flat field accuracy for high end imaging and high precision photometry!
  • USB 2.0 and Ethernet connectivity for remote observatories!
  • Superior Two-stage Cooling -60 degrees C below ambient
  • Water Cooling Ready
  • Uses STX Electronics with Full Frame Image Buffer

SBIG STT-1603ME Specifications

CCD Kodak KAF-6303E
Pixel Array 3072 x 2048 pixels at 9u
CCD Size 27.65 x 18.48 mm
Total Pixels 6.3 Million
Full Well Capacity 100000 e-
Dark Current 0.3e-/pixel/sec at 0C
Antiblooming NABG Only
Shutter Mechanical, Even-illumination
Exposure 0.12 to 3600 seconds, 10ms
Correlated Double Sampling Yes
A/D Converter 16 bit
Gain 1.47e-/ADU
Read Noise 11e- rms
Binning Modes 1x1, 2x2, 3x3, 9x9, x n
Digitization Rate 1.8 Megapixels / Second
Full Frame Download 4 Seconds
Max Cooling Delta -60C with air only
Temp. Regulation ±0.1deg.C
Power 12VDC at 6 amps max
Interface USB 2.0 and Ethernet
Computer Compatibility Windows 32 / 64 bit Mac OSX 3rd party Linux
Mounting 3" Threaded Accessory Plate
Backfocus 0.98" / 24.89mm
Dimensions 6x6x3.5" / 152.4x152.4x88.9cm
Weight 4.5lbs / 2.04kg
