SBIG ST-i Monochrome Planet Cam and Autoguider, 648x484 Array, USB 2.0 Interface

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

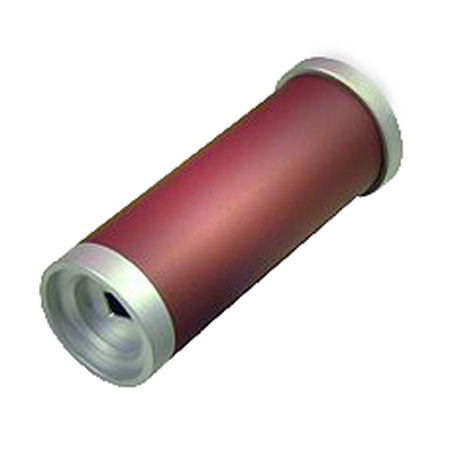

SBIG : Picture 1 regular $595.00


The SBIG ST-i Monochrome Planet Cam and Autoguider is a high performance compact camera, an excellent guider and a very capable Planet Camera. The body is light weight, no larger than many 1.25" eyepieces. In fact, it is 1.25" in diameter, 3.5" long and weighs only 2.2 ounces. The camera receives both control signals and power from the USB port of your computer.

The ST-i is built on the high quality, low noise, Kodak CCD. The KAI-340 CCD has a measured read noise of only 9e- in the ST-i camera. This is the same CCD used as the guiding sensor in the new STX series cameras and the AllSky-340 cameras. The array is 648 x 484 pixels at 7.4 microns square. Anti-blooming is standard. The ST-i uses the Class 1 version of this CCD with 0 column defects, 0 cluster defects, 0 dead pixels and 0 saturated pixels, all according to Kodak specifications. Onchip binning is available for 14.8u pixels if desired and various sub-frame modes may be used to speed-up the focus and download rates. A full frame high res image will update at the rate of approximately 5 frames per second. In addition to full-frame, half-frame and quarter-frame modes, the user may select a sub-frame region of interest (ROI) of any size located anywhere on the CCD. In focus mode, using a 20 x 20 pixel box the update rate is greater than 20 frames per second.

SBIG ST-I Features

  • Low noise, high sensitivity CCD - Monochrome
  • Internal mechanical shutter for automatic dark frames
  • Electronic shutter for short exposures
  • Up to 21 frames per second in focus mode
  • 16 bit A/D
  • Eyepiece size body (1.25" diameter)
  • Lightweight
  • Powered from USB Port
  • Standard Guider Output Port
  • Front end threaded for standard 1.25" filters
  • CCDOPS Autoguiding and Imaging Software with Planet Master
  • CCDSoftV5 Autoguiding and Imaging Software
