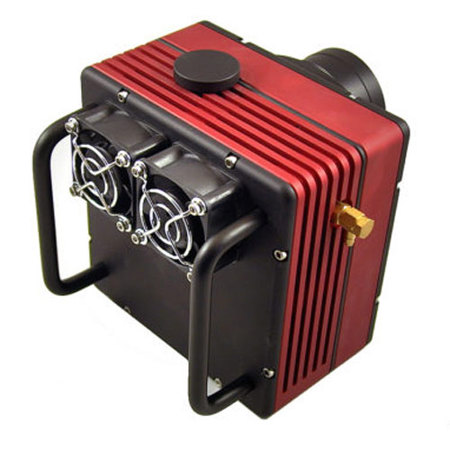

SBIG STT-3200ME High Quantum Efficiency Astronomy Camera, Kodak KAF-3200ME CCD Sensor, 2184x1510 Pixel Array, 16-bit A/D Converter


Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

You save: $1500.00 (19%)

List Price: $7,995.00

Availability: Special Order Item Item cannot be returned or canceled. Card is charged upon placement of order. Approximate ETA at Adorama 1-2 Months from date of order.

Free Shipping

See all shipping options

SBIG STT-3200ME: Picture 1 regular $6,495.00

About SBIG STT-3200ME

The SBIG STT-3200ME High Quantum Efficiency Camera features new design with everything the astroimager could want in a camera. Fast, low noise digitization and a full frame image buffer. At 10MHz the STT downloads a full frame, low-noise 8300 frame in less than a second. It has superior two-stage cooling to -55C below ambient with air only. Its also water cooling-ready for additional cooling without having to buy a replacement back plate or other additional accessory. Its ready to go out of the box. A multitude of advanced features such as built-in frost detection, RBI pre-flash, power management system, Ethernet and USB 2.0, high accuracy temperature control, sapphire window and user selectable internal image processing put this camera in a league of its own. No other astro camera has these features, at any price.

The STT uses the same efficient pin fin heat sink design as the STX series cameras to achieve the most efficient use of space and weight while maximizing the cooling capability of the camera. This type of heat sink is more expensive than typical parallel fin heat sinks, but the results speak for themselves. The STT prototypes achieved an average temperature delta greater than -50C in 5 minutes and a max of -57C in less than ten.

SBIG STT-3200ME Features

  • Self-Guiding in Front of filters
  • Lowest Noise 10Mhz Readout <1 sec
  • High Precision 8-position Filter Wheel
  • User Selectable Internal Image Processing
  • Built-in Frost Detection
  • 2-Stage TE Cooling -55C delta T with air
  • Built-in Web Server
  • Full Frame Image Buffer
  • Even-illumination (photometric) shutter
  • Ethernet and USB 2.0
  • Built-in RBI Pre-flash
  • Liquid Cooling Capability Standard
  • Twin Variable Speed Fans
  • Multi-coated Sapphire Chamber Window
  • Accepts 1.25", 31mm and 36mm filters
  • User Rechargeable Desiccant Plug
  • High Accuracy Temperature Control
  • External Triggers In / Out
  • Status, Power and Relay Indicators
  • Windows 32-bit and 64-bit (and Mac) Software
  • Power Management System
  • 12VDC Operation
