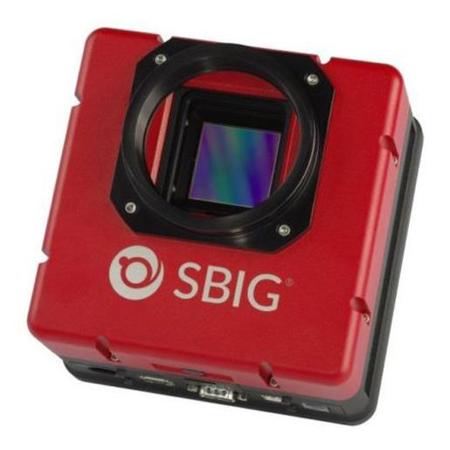

SBIG STXL-6303E Basic CCD Camera Package
See all SBIG items

SBIG STXL-6303E Basic CCD Camera Package, Kodak KAF-6303E CCD Sensor, 16 bit A/D Converter, 4008x2672 pixels

SKU: SBSTXL6303E
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

SBIG STXL-6303E Specifications

  • CCD

    Kodak KAF-6303E

  • Pixel Array

    3072 x 2048 pixels at 9u

  • CCD Size

    27.65 x 18.48 mm

  • Total Pixels

    6.3 Million

  • Full Well Capacity

    100000 e-

  • Dark Current

    0.3e-/pixel/sec at 0C

  • Antiblooming

    NABG Only

  • Shutter

    Mechanical, Even-illumination

  • Exposure

    0.12 to 3600 seconds, 10ms

  • Correlated Double Sampling

    Yes

  • A/D Converter

    16 bit

  • Gain

    1.47e-/ADU

  • Read Noise

    11e- rms

  • Binning Modes

    1x1, 2x2, 3x3, 9x9, x n

  • Digitization Rate

    1.8 Megapixels / Second

  • Full Frame Download

    4 Seconds

  • Max Cooling Delta

    -60C with air only

  • Temp. Regulation

    +/-0.1deg.C

  • Power

    12VDC at 6 amps max

  • Interface

    USB 2.0 and Ethernet

  • Computer Compatibility

    Windows 32 / 64 bit Mac OSX 3rd party Linux

  • Mounting

    3" Threaded Accessory Plate

  • Backfocus

    0.98" / 24.89mm

  • Dimensions

    6x6x3.5" / 152.4x152.4x88.9cm

  • Weight

    4.5lbs / 2.04kg

About SBIG STXL-6303E

The SSBIG STXL-6303E Utilizes a Kodak KAF-6303E CCD Sensor. The superior two-stage cooling -60 degrees C below ambient with air only. Unmatched flat field accuracy for high precision photometry and high end imaging. The SBIG STXL-6303E Basic CCD camera package provides a highly reliable rotating type even-illumination shutter with a shorter backfocus to accommodate camera lenses. Uses STX electronics with a full frame image buffer and the system is water cooling ready. For remote observatories, Ethernet and USB 2.0 included.

SBIG STXL-6303E Features

  • Self-Guiding in Front of filters
  • Lowest Noise 1.8Mhz Readout - 6 sec
  • High Precision 8-position Filter Wheel
  • User Selectable Internal Image Processing
  • 2-Stage TE Cooling -60C delta T with air
  • Built-in Web Server
  • Full Frame Image Buffer
  • Even-illumination (photometric) shutter
  • Ethernet and USB 2.0
  • Built-in RBI Pre-flash
  • Liquid Cooling Capability Standard
  • Uses lower cost 50mm round filters
  • Accepts unmounted and mounted filters
  • User Rechargeable Desiccant Plug
  • Status, Power and Relay Indicators
  • Windows 32-bit and 64-bit (and Mac) Software
  • Optional Remote Guide Head
  • Power Management System
  • 12VDC Operation

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Built-in Web Server
  • Ethernet and USB 2.0
  • 12VDC Operation

What's in the box:

  • SBIG STXL-6303 CCD Camera
  • Self-Guiding 8-Position Color Filter Wheel
  • Even-illumination Shutter
  • USB and Ethernet Cables
  • 2-stage TE cooling & Water Cooling Ready
  • 10MHz digitization & 16-bits
  • Universal Power Supply
  • Cables
  • CCDOPS & CCDSoftV5 & TheSky v.5 Software
  • SBIG 2 Year Parts and Labor Warranty
