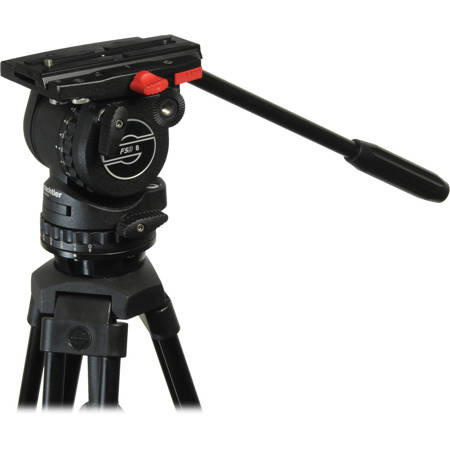

Sachtler FSB 8 75mm Fluid Head with Payload Capacity of 2 to 20 lbs

Sachtler

About Sachtler FSB-8

The sturdy and reliable FSB 8 completes Sachtler's FSB-Range of 75mm heads, extending the payload range to 19.8 lbs (9 kg), well suited for (H)DV camcorders in industrial, newsgathering and education applications. The FSB 8 provides a 10-stage counterbalance, as well as five steps of drag (plus 0) for both tilt and pan.

The fluid head is engineered with Sachtler's well-known technology, including its patented counterbalance switch mechanism, Speedbalance and Sideload technology, which allows quick mounting and unmounting of the camcorder for on-the-go assignments.

Sachtler FSB-8 Specifications

Payload
1 - 9 kg / 2 - 20 lbs
Sliding range - plate
120 mm / 4.7"
Counterbalance
in 10 steps
Grades of drag
5 each horizontal and vertical + 0
Tilt range
+90/-75°
Temperature range
-40° to +60° C / -40 to +140° F
Camera fitting
Sideload plate S
Tripod/Pedestal fitting
75 mm bowl, integrated flat base fitting
Pan bar(s)
1, Type DV 75
Level
self-illuminating Touch Bubble
Batteries Level
1 x CR2032
Adapter viewfinder extension
Optionally
Weight
2.15 kg / 4.7 lbs
Warranty
Sachtler warranty
Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

Lip T  Does this "package" include the tipod Legs as well or it is just the FSB 8 75mm Head only?
Andrew R  This listing is for the FSB 8 fluid head only.
