SteadiCam

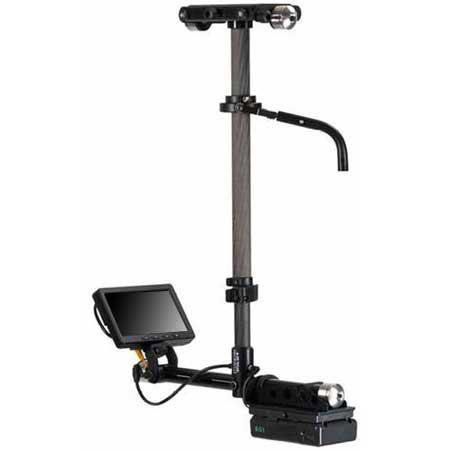

Steadicam Pilot-AA, Lightweight Stabilizer System with Sled, Vest, Arm, Case, & "AA" Type Battery Mount, 5.8" LCD, Supports 2 - 10 lbs.

SKU: SCPAA MFR: PILOT-AA
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$2,795.00
Free Shipping
Qty:

Add to Wishlist In Stock

About the SteadiCam Pilot-AA

The Steadicam Pilot for Video Production.... The new Steadicam Pilot is a state of the art, lightweight stabilizer system designed especially for the modern breed of lightweight cameras from 2 to 10 pounds. Video professionals need add only battery and camera of choice as all other required system components are provided for normal operation.

The Optional SteadiStand or Turtle Base C Stand, required for Steadicam balance and operation, fits neatly in the available soft carry case.

The Steadicam Pilot is designed with a lightweight Iso-elastic Arm and ultra lowprofile vest, lightweight sled with CarbonLite expandable post, this version with 5.8" LCD Monitor, low mass gimbal and offers advanced features/benefits with low cost for the Video Professional.

The Iso-Elastic arm is a two-section, articulated, No-Tools design that can be adjusted while supporting the camera. With this patented, unique design, the Steadicam operator can smoothly and effortlessly raise or lower the arm throughout its 28 inch boom range. The iso-elastic arm is also non-reactive improving vertical stability and control in all operating conditions, from lock-offs to fast funning shots over rough terrain.

The 5.8" LCD 16:9 monitor is included in this version and provides good contrast from dark to light situations. The monitor weight and location on the sled assures the operator perfect balance and ease of operation.

Utilizing a proven Low Mass Gimbal the operator has the ability to capture the fluid movement that only Steadicam can provide. No-tools precision camera stage establishes a solid base for the camera and facilitates smooth adjustment ease from side to side plus fore and aft.

The Carbonlite expandable post and interface to the stage form a solid bond to assure no jitter in the picture as the operator captures those unique scenes. The stage plate is indexed so that the camera can be re-moved and re-mounted without the need to re-adjust the balance. The stage can be easily accessorizedwith focus motor mount, additional connectors or dovetail type camera plate.

The sled boasts a true three axis gimbal and is equipped with counter weights for balance and positionable monitor, gimbal and battery mounts. Counterweights are provided for balance.

The Pilot sled compacts down by removing the lower cross tube. The Pilot's ultra lightweight, low profile vest is designed to provide complete comfort and functionality for extended productions and long continuous shots. No-tools adjustments make it easy to adjust on the fly.

The complete systems ia available in 3 12 volt battery pack options: "AA" battery pack, V-lock or Anton Bauer (This AB Version).



SteadiCam Pilot-AA Includes

  • 5.8" LCD 16:9 Moniter, Sled, Vest, Arm, Case, "AA" Battery Pack,

SteadiCam Pilot-AA Features

  • Frictionless, Silky-Smooth Iso-Elastic Performance
  • Huge 28" Lifting Range
  • Tool-Free One-Touch Lift-Adjustment for each section
  • Lightweight Design
  • 5.8" LCD 16:9 moniter is included
  • CarbonLite Expandable Center Post
  • New Arm / Vest Interface System
  • X-Y Vernier Adjustment of Stage Plate
  • Operates in Standard and Low modes
  • Sled compacts down by removing lower cross tube
  • Stage can be easily accessorized with focus motor mount, additional connectors or dovetail type camera mounting plate
  • True three axis gimbal
  • Stage plate is indexed so that the camera can be re-moved and re-mounted without the need to re-adjust balance
