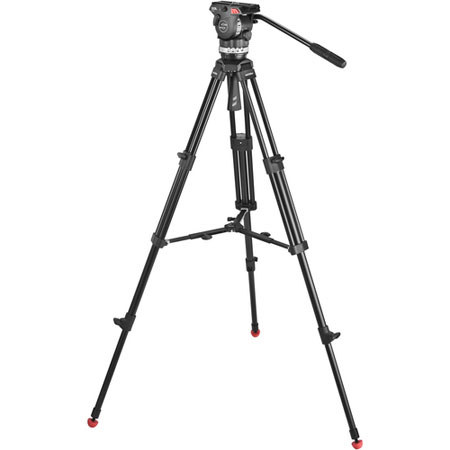

Sachtler 1001 Ace M MS System with Ace M Fluid Head, Tripod, Mid-Level Spreader, Bag, Camera Mounting Plate, Pan Bar

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$655.00 List Price

Our Price

Free Shipping

Get 3% reward

Add to Wishlist In Stock

About the Sachtler 1001

The Sachtler 1001 System Ace M MS Head is a full tripod system for videographers who use HDSLR cameras and smaller camcorders. Whether you're doing documentaries, ENG, weddings, corporate videos, or any other type of projects with a smaller camera, the Ace system matches your needs, enabling broadcast-style performance with lightweight components. With its light weight, compact size and mid-level spreader, this system is perfect for projects that involve multiple setup changes on unpredictable surfaces.

With a payload up to 8.8 lb, the Ace fluid head features five steps of counterbalance as well as a plate that features a 4.1" range of adjustment, so you can balance your small camera to a very precise degree. Designed by Sachtler engineers for the Ace head, the SA drag system enables smooth, precise panning and tilting via the head's pan bar, with three grades of drag in both the horizontal and vertical dimensions, plus the option of zero drag. The head's tilt range is +90deg. to -75deg. .

The tripod mounts the head via its 75mm bowl. With the Ace head attached, the two-stage aluminum model reaches a maximum height of 66.5" for a comfortable working height for almost all users. Also included is a mid-level which adds to the stability of the system on any surface, indoors or out.

The Sachtler 1001 is commonly used for Weddings and more.

Sachtler 1001 Includes

  • Sachtler Ace M Fluid Head
  • Ace Tripod
  • Mid-Level Spreader- Ace Bag
  • Ace Camera Mounting Plate
  • Pan Bar
  • Sachtler Warranty

Summary of Customer Reviews

Customers most agreed on the following attributes:
Best Uses:
Weddings (4)
Reviewer Profile:
Pro photographer (2) , Semi-pro photographer (2)

Sachtler 1001 Features

  • SA Drag for Perfect Performance: The Ace head is developed with a patented drag, SA (synchronized actuated) drag, which guarantees accuracy and repeatability. With three vertical and three horizontal grades of drag, SA drag enables fine adjustments for precise panning and tilting
  • Lightweight Material: Weighing just 3.7 lb on its own, the Ace head is composed of a glass fiber-reinforced composite material, which keeps the head especially light and offers a comfortable, non-slip surface feel
  • Familiar Sachtler Features: The Ace camera plate's parking position for spare camera screws and the long 4.1" sliding range. The plate comes with a 1/4"-20 screw and a video pin
  • Broadcast Feel for Smaller Cameras: With its payload range of 0-8.8 lb, Ace is ideal for smaller HD & HDV camcorders as well as HDSLR cameras. The five-step counterbalance makes it easy to achieve proper balance quickly

Sachtler 1001 Specifications

Load Capacity 8.8 lb (4 kg)
Maximum Height 66.5" (169 cm)
Minimum Height 30.7" (78 cm)
Folded Length 33.5" (85 cm)
Leveling Bubble/Illuminated Yes/no
Head: Counter Balance System Head: 5-step
Head: Quick Release/Wedge Plate Head: Yes
Head: Balance Plate Head: 4.1" (10.4 cm) range of adjustment
Head: Tilt Drag Head: 3 grades each in horizontal and vertical, plus zero
Head: Tilt Range Head: +90deg. / -75deg.
Head: Spring Loaded Counter Bal Head: In 5 steps
Legs: Material Aluminum
Legs: Head Attachment Fitting 75mm bowl
Legs: Leg Stages/Sections 2/3
Legs: Leg Lock Type Thumb screws
Legs: Independent Leg Spread Yes, without spreader attached
Legs: Spiked/Retractable Feet Yes/yes
Legs: Center Brace Mid-level spreader
Operating Temperature -22 to 140deg. F (-30 to 60deg. C)
Weight 9.7 lb (4.4 kg)
