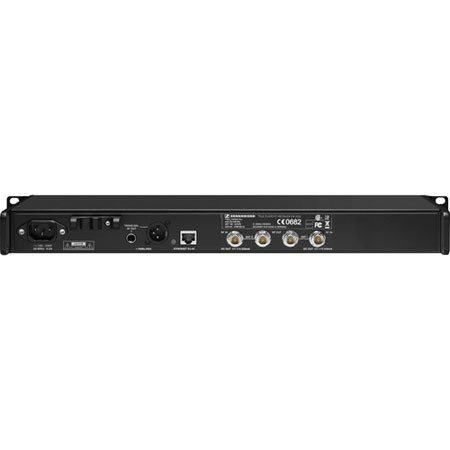

Sennheiser 1-CH Handheld System, Includes SKM 2000XP Transmitter with MMD 835-1 Black Capsule, EM 2000 1-CH Receiver, Bw/626-698MHz Frequency Range

SKU: SE2000H1835B MFR: 2000H1-835BK-B
Sennheiser 1-CH: Picture 1 thumbnail Sennheiser 1-CH: Picture 2 thumbnail

List Price: $3,249.00

Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $114.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $174.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $399.95
20% Off

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Sennheiser 1-CH

The Sennheiser 1-CH Handheld System (Bw/626-698MHz Frequency Range) with MMD 835-1 Black Capsule yields up to 3000 UHF frequencies and 20 fixed frequency bands with up to 64 compatible presets. An integrated active splitter allows up to 16 channels without using external splitters and True Diversity technology minimizes RF noise and drop-out while increasing range and clarity. Ethernet allows the system to be networked with a PC and remotely controlled with Sennheiser's WSM software.

Additional features include a full programmable EQ, channel scanning, infrared syncing between the transmitter and receiver, user-friendly back-lit LCD interface, adjustable headphone output and more.

Sennheiser 1-CH Features

  • Receiver: Rugged 19" all-metal housing with integrated power supply unit
  • Receiver: Up to 3000 frequencies in up to 75 MHz switching bandwidth
  • Receiver: 20 fixed frequency bands with up to 64 compatible presets
  • Receiver: 6 banks each with up to 64 tunable channels
  • Receiver: True diversity technology for best reception quality
  • Receiver: Integrated antenna splitter for cascading up to 8 devices without using additional splitters
  • Receiver: Pilot tone squelch for interference-free operation
  • Receiver: Frequency setting in 25 kHz steps
  • Receiver: Squelch setting always visible on the display
  • Receiver: Antenna cables for active antenna supply
  • Receiver: Transformer-balanced audio outputs
  • Receiver: HDX noise reduction system with signal-to-noise ratio less than 120 dB(A)
  • Receiver: Ethernet for connecting to a PC
  • Receiver: Monitoring and control using Sennheiser WSM PC software
  • Receiver: User-friendly menu interface with two-color backlit graphic display (red as a warning)
  • Receiver: Transmitters can be configured from the receiver menu
  • Receiver: Transmitters can be synchronized over the infrared interface
  • Receiver: 4 selectable equalizer presets
  • Receiver: Soundcheck mode for monitoring transmission conditions
  • Receiver: Adjustable headphone connection
  • Transmitter: Rugged metal housing
  • Transmitter: Up to 75 MHz switching bandwidth
  • Transmitter: 20 fixed frequency bands with up to 64 compatible presets
  • Transmitter: 6 banks each with up to 64 tunable channels
  • Transmitter: Frequency setting in 25 kHz steps

Sennheiser 1-CH Specifications

Receiver: Frequency
Bw / 626 - 698MHz
Receiver: Carrier Frequency
Max. 3000
Receiver: Presets
Receiver: Bandwidth
Max. 75MHz
Receiver: Squelch
Off, 5 - 25 dBuV can be set in 2dB steps
Receiver: Intermodulation Distortion
= 75 dB
Receiver: Antenna Connector
2 BNC (50Ohms)
Receiver: Gain
0 dB ±0.5 dB based on antenna inputs
Receiver: Operating Temperature
-10 deg.C - + 55 deg.C
Receiver: Deviation
+/- 48kHz (Peak)
Receiver: Compander
Receiver: Signal-to-Noise Ratio
> 120 dB(A)
Receiver: THD
< 0.9%
Receiver: Frequency Response
25Hz to 18kHz
Receiver: Connector
XLR-3 + 1/4" Phone (6.3mm) jack
Receiver: Power Supply
100 to 240 VAC, 50/60Hz
Receiver: Consumption
Transmitter: Modulation
Transmitter: Frequency
Bw / 626 - 698MHz
Transmitter: Carrier Frequency
Max. 3000
Transmitter: Presets
Max. 64
Transmitter: Bandwidth
Max. 75Hz
Transmitter: Signal-to-Noise Ratio
= 120 dBA (@ 1mV peak deviation)
Transmitter: Frequency Response
80Hz - 18kHz
Transmitter: Audio Output Power
Selectable from 10, 30, 50, or 100 mW
Transmitter: Compander
Transmitter: Deviation
Nominal: ±24 kHz
Peak: ± 48 kHz
Transmitter: Operating Voltage
2 x 1.5 V (AA)
8 Hours
Receiver: 19.01 x 8.54 x 1.69" (483 x 217 x 43mm)
Transmitter: 1.96 x 10.43" (50 x 265mm)
Receiver: 6.39 lbs (2.9 kg)
Transmitter: 0.99 lbs (0.44kg)
