Sennheiser 1-CH Handheld System, Includes SKM2000XP Transmitter with MMD 935-1 Black Capsule, EM 2000 1-CH Receiver, Gw / 558 - 626MHz Frequency Range

Sennheiser
SKU: SE2000H1935G MFR: 2000H1-935BK-G
Sennheiser 1-CH: Picture 1 thumbnail Sennheiser 1-CH: Picture 2 thumbnail
Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $114.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $174.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $399.95
Made in USA

Our Price

$2,649.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Sennheiser 1-CH

The Sennheiser 1-CH Handheld System (Gw / 558 - 626MHz Frequency Range) yields up to 3000 UHF frequencies and 20 fixed frequency bands with up to 64 compatible presets. An integrated active splitter allows up to 16 channels without using external splitters and True Diversity technology minimizes RF noise and drop-out while increasing range and clarity. Ethernet allows the system to be networked with a PC and remotely controlled with Sennheiser's WSM software.

Additional features include a full programmable EQ, channel scanning, infrared syncing between the transmitter and receiver, user-friendly back-lit LCD interface, adjustable headphone output and more.

Sennheiser 1-CH Features

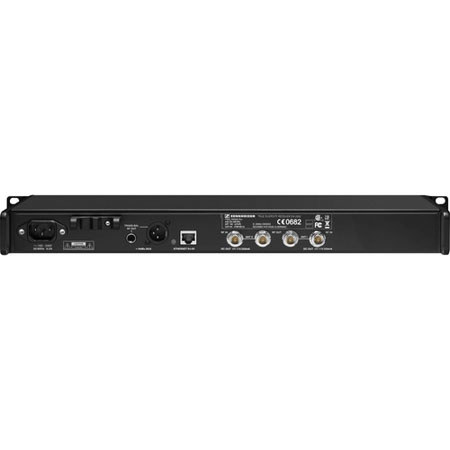

  • Receiver: Rugged 19" all-metal housing with integrated power supply unit
  • Receiver: Up to 3000 frequencies in up to 75 MHz switching bandwidth
  • Receiver: 20 fixed frequency bands with up to 64 compatible presets
  • Receiver: 6 banks each with up to 64 tunable channels
  • Receiver: True diversity technology for best reception quality
  • Receiver: Integrated antenna splitter for cascading up to 8 devices without using additional splitters
  • Receiver: Pilot tone squelch for interference-free operation
  • Receiver: Scan feature within the channel band system
  • Receiver: Continuous scanning together with Sennheiser's Wireless Systems Manager
  • Receiver: Frequency setting in 25 kHz steps
  • Receiver: Squelch setting always visible on the display
  • Receiver: Antenna cables for active antenna supply
  • Receiver: Transformer-balanced audio outputs
  • Receiver: HDX noise reduction system with signal-to-noise ratio less than 120 dB(A)
  • Receiver: Ethernet for connecting to a PC
  • Receiver: Monitoring and control using Sennheiser WSM PC software
  • Receiver: User-friendly menu interface with two-color backlit graphic display (red as a warning)
  • Receiver: 4 selectable equalizer presets
  • Receiver: Soundcheck mode for monitoring transmission conditions
  • Receiver: Adjustable headphone connection
  • Transmitter: Rugged metal housing
  • Transmitter: Up to 75 MHz switching bandwidth
  • Transmitter: 20 fixed frequency bands with up to 64 compatible presets
  • Transmitter: 6 banks each with up to 64 tunable channels
  • Transmitter: Frequency setting in 25 kHz steps

Sennheiser 1-CH Specifications

Frequency Range
Gw / 558 - 626MHz
Receiver: Carrier Frequency
Max. 3000
Receiver: Presets
64
Receiver: Bandwidth
Max. 75MHz
Receiver: Squelch
Off, 5 - 25 dBuV can be set in 2dB steps
Receiver: Intermodulation Distortion
= 75 dB
Receiver: Antenna Connector
2 BNC (50Ohms)
Receiver: Gain
0 dB ±0.5 dB based on antenna inputs
Receiver: Operating Temperature
-10 deg.C - + 55 deg.C
Receiver: Deviation
+/- 48kHz (Peak)
Receiver: Compander
HDX
Receiver: Signal-to-Noise Ratio
> 120 dB(A)
Receiver: THD
< 0.9%
Receiver: Frequency Response
25Hz to 18kHz
Receiver: Connector
XLR-3 + 1/4" Phone (6.3mm) jack
Receiver: Power Supply
100 to 240 VAC, 50/60Hz
Receiver: Consumption
0.25A
Transmitter: Modulation
FM
Transmitter: Carrier Frequency
Max. 3000
Transmitter: Presets
Max. 64
Transmitter: Bandwidth
Max. 75Hz
Transmitter: Signal-to-Noise Ratio
= 120 dBA (@ 1mV peak deviation)
Transmitter: Frequency Response
80Hz - 18kHz
Transmitter: Audio Output Power
Selectable from 10, 30, 50, or 100 mW
Transmitter: Compander
HDX
Transmitter: Deviation
Nominal: ±24 kHz
Peak: ± 48 kHz
Transmitter: Operating Voltage
2 x 1.5 V (AA)
8 Hours
Dimensions
Receiver: 19.01 x 8.54 x 1.69" (483 x 217 x 43mm)
Transmitter: 1.96 x 10.43" (50 x 265mm)
Weight
Receiver: 6.39 lbs (2.9 kg)
Transmitter: 0.99 lbs (0.44kg )
