Sennheiser EM2050 Stationary Twin Receiver with Integrated Antenna Splitter, BW 626-698 MHz Frequency Range

Sennheiser
SKU: SEEM2050BW MFR: EM2050-BW

List Price: $3,509.00

Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $114.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $174.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $399.95
20% Off

Our Price

$2,799.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Sennheiser EM2050

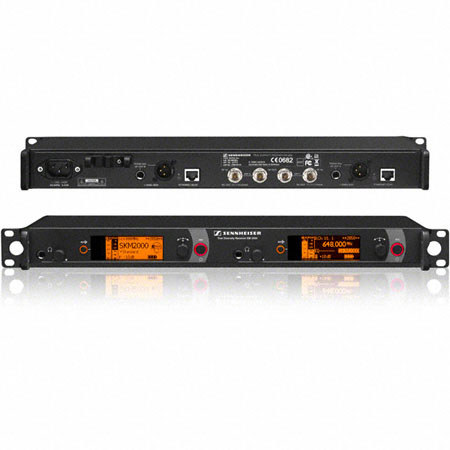

The Sennheiser EM 2050 Professional Microphone Twin Receiver (BW 626-698 MHz Frequency Range) uses true diversity technology for superior performance with 5 windows of up to 75MHz in the UHF range. This transmitter can be synchronized via infrared or connected to your network via Ethernet for remote monitoring and control with Sennheiser Wireless System Manager software. With the EM 2050 twin receiver, it is possible to setup systems with up to 16 channels without external splitter.

Sennheiser EM2050 Features

  • Rugged 19" all-metal housing with integrated power supply unit
  • Up to 3000 frequencies in up to 75 MHz switching bandwidth
  • 20 fixed frequency bands with up to 64 compatible presets
  • 6 banks each with up to 64 tunable channels
  • True diversity technology for best reception quality
  • Integrated antenna splitter for cascading up to 8 devices without using additional splitters
  • Pilot tone squelch for interference-free operation
  • Scan feature within the channel band system
  • Continuous scanning together with Sennheiser's Wireless Systems Manager
  • Frequency setting in 25 kHz steps
  • Squelch setting always visible on the display
  • Antenna cables for active antenna supply
  • Transformer-balanced audio outputs
  • HDX noise reduction system with signal-to-noise ratio less than 120 dB(A)
  • Ethernet for connecting to a PC
  • Monitoring and control using Sennheiser WSM PC software
  • User-friendly menu interface with two-color backlit graphic display (red as a warning)
  • Transmitters can be configured from the receiver menu
  • Transmitters can be synchronized over the infrared interface
  • 4 selectable equalizer presets
  • Soundcheck mode for monitoring transmission conditions
  • Adjustable headphone connection

Sennheiser EM2050 Specifications

Frequency Range
BW: 626-698 MHz
Carrier Frequencies
Max. 3000
Presets
Max. 64
Switching Bandwidth
Max. 75 MHz
Peak Deviation
+/- 48 kHz
Squelch Threshold
Off, 5 - 25 dBuV Can be set in 2 dB steps
Intermodulation Spacing
= 75 dB
Antenna Connector
2 BNC (50 OHM)
Cascadable
2 BNC (50 OHM)
Gain
0 dB ±0,5 dB Based on antenna inputs
Compander
HDX
Frequency response
25 - 18000 Hz
Signal-to-noise Ratio
> 120 dB(A)
THD, Total Harmonic Distortion
< 0.9 %
Audio-XLR Connector
2 x XLR-3 + 2 x 6,3 mm Jack
Audio output level (balanced)
+18 dBu max Setting range: 49 dB in 1 dB steps + 6 dB gain reserve
Booster
12 V DC, 2 x 200 mA Short-circuit proof
Power supply
100 - 240 V AC, 50/60 Hz
Operating Temperature
-10 deg.C - +55 deg.C
Current Consumption
Max. 0,25 A
Dimensions
217 x 483 x 43mm / 8.54 x 19.02 x 1.69"
Weight
2900g / 102.3oz
