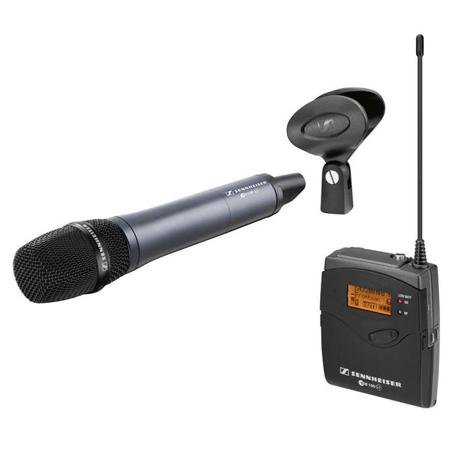

Sennheiser EW135PG3B Wireless Kit with EK 100 G3 Diversity Receiver - Frequency Band B (Range: 626-668 MHZ)

Mfr. Part: EW135PG3B     SKU: SEEW135PG3B

Sennheiser EW135PG3B Wireless Kit with EK 100 G3 Diversity Receiver - Frequency Band B (Range: 626-668 MHZ)
enlarge image

Free Shipping view details

Product Rating Write a Review

Item Includes
Sennheiser EK 100 G3 Diversity Receiver - 1 SKM 100-835 G3 Handheld Transmitter (Dynamic, Cardioid) - 1 MZQ 1 Microphone Clip - 1 CL 1 Jack Cable - 1 CL 100 XLR Cable - 1 CA 2 Camera Adaptor - 4 AA Batteries - Operating Instructions - Sennheiser 2 Years Limited Warranty

Description
The Sennheiser EW135PG3 handheld system designed for field operation: this system is the perfect choice for ENG professionals. The rugged hand-held cardioid wireless microphone provides professional sound quality for interviews and reporting, even under unfavorable conditions. At the camera end of the wireless signal path is the portable and reliable EK 100 G3 adaptive diversity receiver.

Features
Sturdy metal housing (transmitter and receiver)
42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
Enhanced frequency bank system with up to 12 compatible frequencies
Adaptive-diversity reception for high reception quality
Pilot tone squelch for eliminating RF interference when transmitter is turned off
Automatic frequency scan feature searches for available frequencies
Enhanced AF frequency range
Increased range for audio sensitivity
Wireless synchronization of transmitters via infrared interface
User-friendly menu operation with more control options
Illuminated graphic display (transmitter and receiver)
Auto-Lock function avoids accidental changing of settings
HDX compander for crystal-clear sound
Transmitter and receiver feature battery indication in 4 steps
Easy-exchangeable microphone modules from evolution series
Contacts for recharging BA 2015 accupack directly in the transmitter or receiver
Wide range of accessories adapts the system to any requirement

Specifications
Transmission/receiving frequencies1680
Presets12
Switching bandwidth42
Peak deviation+/- 48 kHz
CompanderHDX
Frequency response (microphone)80 to 18000 Hz
Signal-to-noise ratio> 110 dB(A)
THD, total harmonic distortion< 0.9 %
In compliance withETS 300422 , ETS 300445 , CE , FCC
Audio-XLR connector3.5 mm jack
Audio output level (unbalanced)+10 dBu max
RF output power30 mW
Operating time (transmitter)typ. 8 h
Transducer; Microphone typeDynamic
AF sensitivity2,1 mV/Pa
Sound pressure level (SPL)154 dB(SPL) max.
Pick-up patternCardioid
Dimensions (Receiver)82 x 64 x 24 mm
Weight (Receiver)~ 160 g
Dimensions (Transmitter)d=50mm, l=265mm
Weight (Transmitter)450 g
WarrantySennheiser 2 years limited warranty
