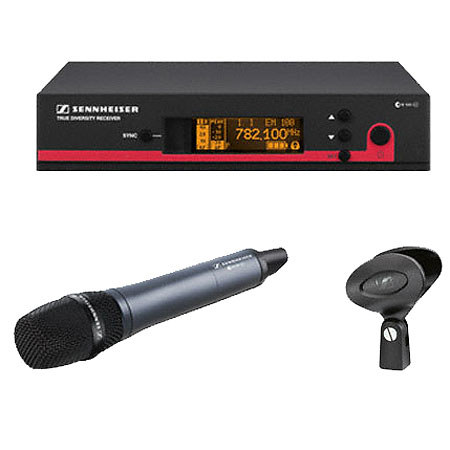

Sennheiser EW145 G3 Wireless Handheld Microphone System with EM 100 G3 Receiver (Frequency A, Range: 516-558 MHZ)

Sennheiser
SKU: SEEW145G3A MFR: EW145G3A

List Price: $819.00

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $55.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $59.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $154.95
21% Off

Our Price

$649.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Sennheiser EW145

The Sennheiser EW145 G3 Wireless Handheld Microphone System features super-cardioid capsule which captures more of what you want while rejecting off-axis noise. This makes the mic very resistant to feedback as well as a great choice for those working with loud stage volume levels. The included soundcheck mode on the receiver makes it possible to check the RF signal strength and audio levels continuously.

The new G3 sync function allows you to wirelessly link the transmitter with the receiver with a simple push of a button. Lastly, the true diversity receiver has a built-in 5 band equalizer which completes this professional sound package.

Sennheiser EW145 Features

  • Sturdy metal housing (transmitter and receiver)
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 12 compatible frequencies
  • High-quality true diversity reception
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitters via infrared interface
  • User-friendly menu operation with more control options
  • Illuminated graphic display (transmitter and receiver)
  • Auto-Lock function avoids accidental changing of settings
  • HDX commander for crystal-clear sound
  • Transmitter feature battery indicatation in 4 steps, also shown on receiver display
  • Handheld transmitter with easy-exchangeable microphone modules from evolution series
  • Integrated Equalizer and Soundcheck mode
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement

Sennheiser EW145 Specifications

RF frequency range
516 - 558 MHz
Transmission/receiving frequencies
1,680
Presets
12
Switching bandwidth
42 MHz
Peak deviation
± 48 kHz
Compander
HDX
Frequency response (microphone)
80 - 18,000 Hz
Signal-to-noise-ratio
> 110 dB(A)
Total harmonic distortion (THD)
< 0.9%
In compliance with
ETS 300422, ETS 300445, CE, FCC
Antenna connector
2 BNC, 50O
XLR connector
6.3 mm
Audio output level (balanced)
XLR: +18 dBu max
Audio output level (unbalanced)
Jack: +10 dBu max
RF output power
30 mW
Operating time (transmitter)
typ. 8 h
Dimensions (transmitter)
d=2 in. (50 mm), l=10.4 in. (265 mm)
Weight (transmitter)
15.9 oz. (450 g)
Transducer / microphone type
Dynamic
AF sensitivity
1.6 mV/Pa
Sound pressure level (SPL)
154 dB(SPL) max.
Pick-up pattern
Super-cardioid
Dimensions (receiver)
8.3 x 8 x 1.7 in. (212 x 202 x 43 mm)
Weight (receiver)
2 oz (900 g)
Warranty
Sennheiser 2 years limited warranty
