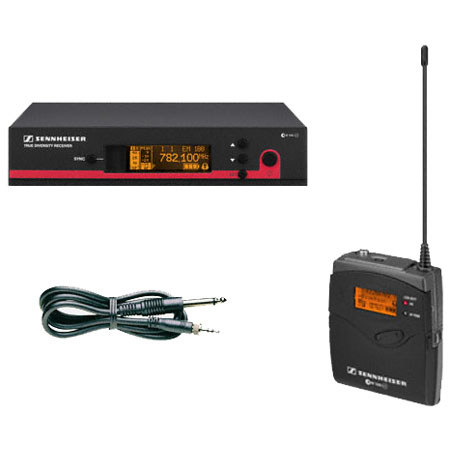

Sennheiser EW172 G3 Rack-Mount Receiver & Bodypack Transmitter System (Frequency A, Range: 516-558 MHZ)

Sennheiser
SKU: SEEW172G3A MFR: EW172G3A

List Price: $629.00

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $24.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $84.95
21% Off

Our Price

$499.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Sennheiser EW172

The Sennheiser EW172 G3 Rack-Mount Receiver & Bodypack Transmitter system's new cable emulator feature allows you to adjust virtual cable lengths to get sound response just like a cable. Another great new feature for guitarists is the built-in guitar tuner, right on the display. A built in 5 band EQ allows you to fine tune your sound even further.

Bass players in particular will be pleased with the enhanced AF frequency response: it starts at a thundering 25 Hz, which will especially please players with 5 string bass guitars.

Sennheiser EW172 Features

  • Sturdy metal housing (transmitter and receiver)
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 12 compatible frequencies
  • High-quality true diversity reception
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitters via infrared interface
  • User-friendly menu operation with more control options
  • Illuminated graphic display (transmitter and receiver)
  • Auto-Lock function avoids accidental changing of settings
  • HDX commander for crystal-clear sound
  • Transmitter feature battery indicatation in 4 steps, also shown on receiver display
  • Programmable Mute function
  • Integrated Equalizer, Soundcheck mode and guitar tuner
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement

Sennheiser EW172 Specifications

Receiver: Principle
True Diversity
Receiver: Sensitivity
<2.5 µV at 52 dBAeff S/N (with HDX, peak deviation)
Receiver: Adjacent channel rejection
65 dB
Receiver: Intermodulation attenuation
65 dB
Receiver: Blocking
70 dB
Receiver: Pilot-tone squelch
Detachable
Receiver: Antenna inputs
2 BNC sockets
Receiver: AF output voltage
1/4" (6.3 mm) jack socket, unbalanced: +12 dBu XLR socket, balanced: +18 dBu
Receiver: Power supply
12 V DC
Transmitter: RF output power at 50 Ohm
typ. 30 mW
Transmitter: AF frequency response
25 - 18.000 Hz (Line)
80 - 18.000 Hz (Mic)
Max input voltage transmitter / line
3 Veff
Input impedance transmitter / line
40 k ohm, unbalanced / 1 Mohm
Transmitter: Power supply
2 AA batteries, 1.5 V
Transmitter: Nominal voltage
2.4 V
Transmitter: Operating time
typ. 8 h
Transmitter: Dimensions
82 x 64 x 25 mm (3.23" x 2.52" x 0.94")
Transmitter: Weight
approx. 160 g (5.64 oz)
Receiver: Dimensions
190 x 212 x 43 mm (7.48" x 8.35" x 1.69)
Receiver: Weight
approx. 900 g (1.99 lbs)
Warranty
Sennheiser 2 years limited warranty
