About the Sennheiser EW172

The Sennheiser EW172G3CC-G Wireless Instrument System with Ci 1 Guitar Cable is designed to provide dependable wireless performance for guitars and instruments for rehearsals, recording, stage and other applications. The system includes a UHF diversity receiver, bodypack transmitter and Ci 1 instrument cable with 1/4" phone connector. The transmitter and receiver synchronize channel and frequency at the touch of a button. The bodypack allows you to charge the (optional) rechargeable pack while it remains in the transmitter. A back-lit display allows for easy operation under dimly-lit conditions and it's user friendly menu makes operation quick and easy.

In addition, the ew 172 G3 also includes some handy guitar specific features. The system's cable emulator feature allows you adjust virtual cable lengths to get sound response similar to a cable. Another practical feature for guitarists is the built-in guitar tuner, right on the display. A built in 5 band EQ allows you to fine tune your sound even further. Bass players in particular will be pleased with the enhanced AF frequency response: it starts at 25 Hz, which will especially please players with 5 string bass guitars.

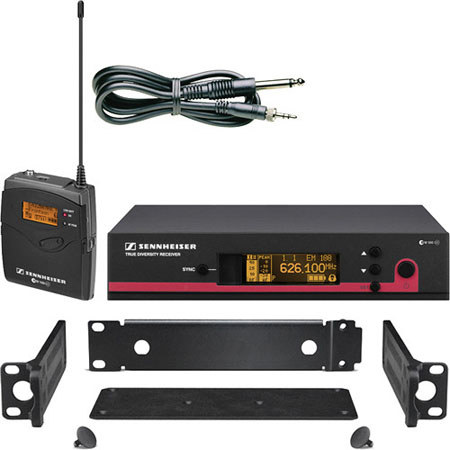

Sennheiser EW172 Includes

  • Sennheiser GA 3 Rackmount Kit for G3 100/300/500 Series
  • EM 100 G3 Wireless UHF Diversity Receiver-A (566-608 MHz)
  • SK 100 G3 Wireless Transmitter Body Pack-A (566-608 MHz)
  • CI1 1/8" Mini to 1/4" Male Jack Guitar Connecting Cable
  • NT 2-3-US Power Supply
  • 2 x Receiver Antennas
  • 2 x Stacking Elements
  • 2 x AA Batteries
  • Sennheiser Warranty

Sennheiser EW172 Features

  • Sturdy metal housing (transmitter and receiver)
  • 42MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 12 compatible frequencies
  • High-quality true diversity reception
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitters via infrared interface
  • User-friendly menu operation with more control options
  • Illuminated graphic display (transmitter and receiver)
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Transmitter feature battery indicatation in 4 steps, also shown on receiver display
  • Programmable Mute function
  • Integrated Equalizer, Soundcheck mode and guitar tuner
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement

Sennheiser EW172 Specifications

Type of System True Diversity UHF Wireless Instrument System
RF Carrier Frequency Range A (566-608 MHz)
Overall Frequency Response Line: 25 Hz - 18 kHz
Mic: 80 Hz - 18 kHz
Signal-to-Noise Ratio > / - 110 dBA
No Of Channels 1680
20 Channel Banks, 1 Fixed Bank, 12 Factory Preset Channels Each
Type of Receiver EM 100 Half-Rack Mountable True Diversity UHF
Receiver: Type of Outputs Balanced XLR
Unbalanced 1/4" Phone
Receiver: Headphone Monitoring 1/4" Phone (Front Panel)
Receiver: Power Requirements 12 VDC
Receiver: Display Back-lit LCD Display
Receiver: Mounting Options Included GA 3 Rackmount Kit
Receiver: Antenna Type BNC Type x2
Transmitter: Type of Transmitter SK 100 Bodypack Transmitter
Transmitter: Type of Input Connector Locking 1/8" (3.5mm) Mini
Transmitter: Type of Microphone Ci 1 Instrument Cable
Transmitter: Battery Type/Approx. Life AA 1.5 V Batteries x2 (8 Hours Typ.)
Transmitter: Mute Switch Programmable Mute Function
Transmitter: Level Control Yes
Transmitter: Antenna Type 1/4 Wave
Transmitter: Display Back-Lit LCD
Dimensions Receiver:7.48x8.35x1.69" (18.99x21.20x4.29cm)
Transmitter:3.23x2.92x0.94" (8.20x7.41x2.38cm)
Weight Receiver:1.99 lbs (0.902 kg)
Transmitter:160 g (5.64 oz)
