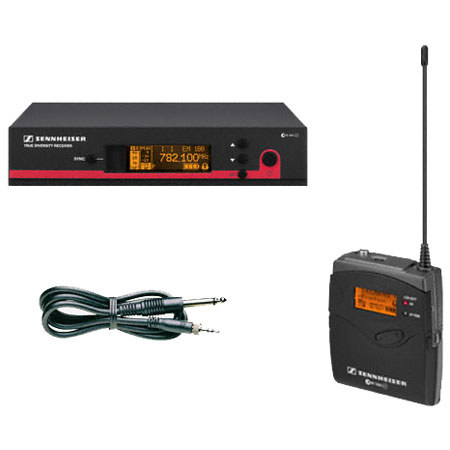

Sennheiser EW172 G3 Rack-Mount Receiver & Bodypack Transmitter System (Frequency G, Range: 566-608 MHZ)

SKU: SEEW172G3G MFR: EW172G3G
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 2 - 4 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$499.95 $20 per week
Free Overnight Shipping
Qty:
Add to Wishlist

Protect your investment

About the Sennheiser EW172

The Sennheiser EW172 G3 Rack-Mount Receiver & Bodypack Transmitter system's new cable emulator feature allows you to adjust virtual cable lengths to get sound response just like a cable. Another great new feature for guitarists is the built-in guitar tuner, right on the display. A built in 5 band EQ allows you to fine tune your sound even further.

Bass players in particular will be pleased with the enhanced AF frequency response: it starts at a thundering 25 Hz, which will especially please players with 5 string bass guitars.

Sennheiser EW172 Includes

  • Sennheiser EM 100 G3 Rack-Mount Receiver
  • SK 100 G3 Bodypack Transmitter
  • CI 1 Instrument Cable
  • NT 2 Power Supply Unit
  • 2 Antennas
  • 2 Stacking Elements
  • 2 AA Batteries
  • Operating Instructions
  • Sennheiser 2 Years Limited Warranty

Sennheiser EW172 Features

  • Sturdy metal housing (transmitter and receiver)
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 12 compatible frequencies
  • High-quality true diversity reception
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitters via infrared interface
  • User-friendly menu operation with more control options
  • Illuminated graphic display (transmitter and receiver)
  • Auto-Lock function avoids accidental changing of settings
  • HDX commander for crystal-clear sound
  • Transmitter feature battery indicatation in 4 steps, also shown on receiver display
  • Programmable Mute function
  • Integrated Equalizer, Soundcheck mode and guitar tuner
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement

Sennheiser EW172 Specifications

Receiver: Principle True Diversity
Receiver: Sensitivity <2.5 µV at 52 dBAeff S/N (with HDX, peak deviation)
Receiver: Adjacent channel rejection 65 dB
Receiver: Intermodulation attenuation 65 dB
Receiver: Blocking 70 dB
Receiver: Pilot-tone squelch Detachable
Receiver: Antenna inputs 2 BNC sockets
Receiver: AF output voltage 1/4" (6.3 mm) jack socket, unbalanced: +12 dBu XLR socket, balanced: +18 dBu
Receiver: Power supply 12 V DC
Transmitter: RF output power at 50 Ohm typ. 30 mW
Transmitter: AF frequency response 25 - 18.000 Hz (Line)
80 - 18.000 Hz (Mic)
Max input voltage transmitter / line 3 Veff
Input impedance transmitter / line 40 k ohm, unbalanced / 1 Mohm
Transmitter: Power supply 2 AA batteries, 1.5 V
Transmitter: Nominal voltage 2.4 V
Transmitter: Operating time typ. 8 h
Transmitter: Dimensions 82 x 64 x 25 mm (3.23" x 2.52" x 0.94")
Transmitter: Weight approx. 160 g (5.64 oz)
Receiver: Dimensions 190 x 212 x 43 mm (7.48" x 8.35" x 1.69)
Receiver: Weight approx. 900 g (1.99 lbs)
Warranty Sennheiser 2 years limited warranty
