Sennheiser

Sennheiser EW312 G3 Wireless Bodypack Microphone System with ME 2 Microphone (Frequency B, Range: 626-668 MHZ)

SKU: SEEW312G3B MFR: EW312G3B
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 2 - 4 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$849.95
Free Shipping
Qty:
Add to Wishlist

Protect your investment

About the Sennheiser EW312

The Sennheiser EW312 G3 is a Wireless Bodypack Microphone System. When the settings on the receiver are changed, the components adjust to each other automatically with one push of the front panel sync button. The bodypack transmitter is equipped with charging contacts for the optional BA2015 rechargeable battery. The inconspicuous omni-directional clip-on microphone is optimized for best reproducing the sound of the human voice and provides supreme speech intelligibility.

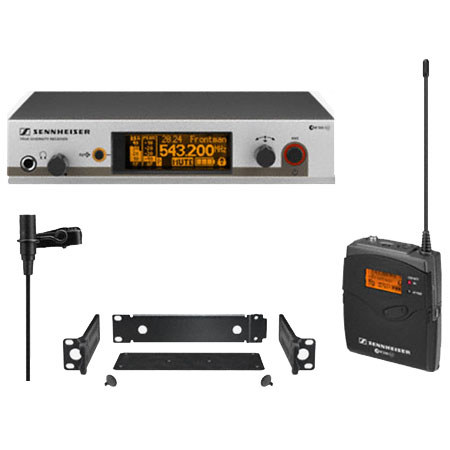

Sennheiser EW312 Includes

  • Sennheiser EM 300 G3 Rack-Mount Receiver
  • SK 300 G3 Bodypack Transmitter
  • ME 2 Clip-on Microphone (Omni-directional)
  • GA 3 Rack Mount
  • NT 2 Power Supply Unit
  • 2 Antennas
  • 2 AA Batteries
  • Operating Instructions
  • Sennheiser 2 Years Limited Warranty

Sennheiser EW312 Features

  • Sturdy metal housing (transmitter and receiver)
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 24 compatible frequencies
  • Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
  • High-quality true diversity reception
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitter parameter from receiver
  • User-friendly menu operation with more control options
  • Illuminated graphic display, receiver also shows transmitter settings
  • Auto-Lock function avoids accidental changing of settings
  • HDX commander for crystal-clear sound
  • Transmitter feature battery indicatation in 4 steps, also shown on receiver display
  • Programmable Mute function
  • Integrated Equalizer and Soundcheck mode
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement

Sennheiser EW312 Specifications

Receiver principle True Diversity
Receiver: Sensitivity <2 µV at 52 dBAeff S/N (with HDX, peak deviation)
Receiver: Adjacent channel rejection = 75 dB
Receiver: Intermodulation attenuation = 70 dB
Receiver: Blocking = 75 dB
Receiver: Pilot-tone squelch Detachable
Receiver: Antenna inputs 4 BNC sockets
Receiver: AF output voltage 1/4" (6.3 mm) jack socket, unbalanced: +12 dBu XLR socket, balanced: +18 dBu (at peak deviation, 1kHz AF)
Receiver: Power supply 12 V DC
Transmitter: RF output power at 50 ohm typ. 30/10mW, switchable
Transmitter: AF frequency response 25 - 18.000 Hz (Line)
Max input voltage transmitter / line 3 Veff
Input impedance transmitter / line 40 k ohm, unbalanced / 1Mohm
Transmitter: Power supply 2 AA batteries, 1.5 V
Transmitter: Nominal voltage 2.4 V
Transmitter: Operating time typ. 8h
Microphone: Transducer principle Condenser
Microphone: Sensitivity 20 mV/Pa
Microphone: Pick-up pattern Omni-directional
Microphone: Max. SPL 130 dB SPL
Receiver: Dimensions 202 x 212 x 43 mm (7.95" x 8.35" x 1.69")
Receiver: Weight approx. 980 g (2.16 lbs)
Transmitter: Dimensions 82 x 64 x 24 mm / 3.23" x 2.52" x 0.94"
Transmitter: Weight approx. 160 g (5.64 oz)
Warranty Sennheiser 2 years limited warranty
