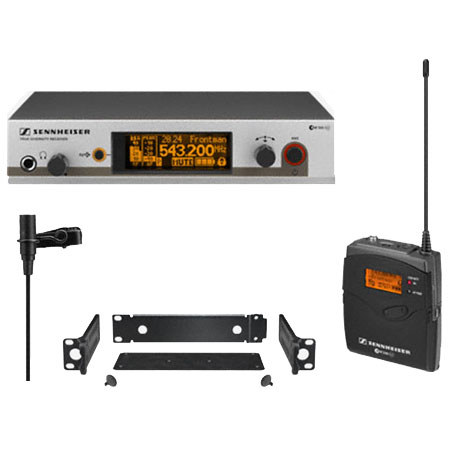

Sennheiser EW312 G3 Wireless Bodypack Microphone System with ME 2 Microphone (Frequency G, Range: 566-608 MHZ)

Sennheiser
SKU: SEEW312G3G MFR: EW312G3G

List Price: $1,069.00

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $55.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $59.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $154.95
20% Off

Our Price

$849.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Sennheiser EW312

The Sennheiser EW312 G3 is a Wireless Bodypack Microphone System. When the settings on the receiver are changed, the components adjust to each other automatically with one push of the front panel sync button. The bodypack transmitter is equipped with charging contacts for the optional BA2015 rechargeable battery. The inconspicuous omni-directional clip-on microphone is optimized for best reproducing the sound of the human voice and provides supreme speech intelligibility.

Sennheiser EW312 Features

  • Sturdy metal housing (transmitter and receiver)
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 24 compatible frequencies
  • Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
  • High-quality true diversity reception
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitter parameter from receiver
  • User-friendly menu operation with more control options
  • Illuminated graphic display, receiver also shows transmitter settings
  • Auto-Lock function avoids accidental changing of settings
  • HDX commander for crystal-clear sound
  • Transmitter feature battery indicatation in 4 steps, also shown on receiver display
  • Programmable Mute function
  • Integrated Equalizer and Soundcheck mode
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement

Sennheiser EW312 Specifications

Receiver principle
True Diversity
Receiver: Sensitivity
<2 µV at 52 dBAeff S/N (with HDX, peak deviation)
Receiver: Adjacent channel rejection
= 75 dB
Receiver: Intermodulation attenuation
= 70 dB
Receiver: Blocking
= 75 dB
Receiver: Pilot-tone squelch
Detachable
Receiver: Antenna inputs
4 BNC sockets
Receiver: AF output voltage
1/4" (6.3 mm) jack socket, unbalanced: +12 dBu XLR socket, balanced: +18 dBu (at peak deviation, 1kHz AF)
Receiver: Power supply
12 V DC
Transmitter: RF output power at 50 ohm
typ. 30/10mW, switchable
Transmitter: AF frequency response
25 - 18.000 Hz (Line)
Max input voltage transmitter / line
3 Veff
Input impedance transmitter / line
40 k ohm, unbalanced / 1Mohm
Transmitter: Power supply
2 AA batteries, 1.5 V
Transmitter: Nominal voltage
2.4 V
Transmitter: Operating time
typ. 8h
Microphone: Transducer principle
Condenser
Microphone: Sensitivity
20 mV/Pa
Microphone: Pick-up pattern
Omni-directional
Microphone: Max. SPL
130 dB SPL
Receiver: Dimensions
202 x 212 x 43 mm (7.95" x 8.35" x 1.69")
Receiver: Weight
approx. 980 g (2.16 lbs)
Transmitter: Dimensions
82 x 64 x 24 mm / 3.23" x 2.52" x 0.94"
Transmitter: Weight
approx. 160 g (5.64 oz)
Warranty
Sennheiser 2 years limited warranty
Mfr #
EW312G3G
SKU
SEEW312G3G
