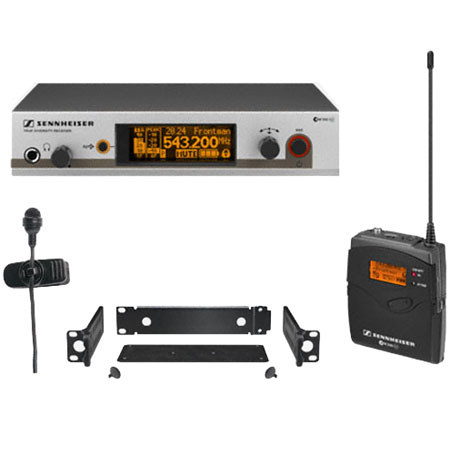

Sennheiser EW322 G3 Wireless Bodypack Microphone System with ME 4 Microphone (Frequency G, Range: 566-608 MHZ)

Sennheiser
SKU: SEEW322G3G MFR: EW322G3G
Free 3 Day Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $55.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $59.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $154.95
Made in USA

Our Price

$849.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Sennheiser EW322

The Sennheiser EW322 G3 is a Wireless Bodypack Microphone System includes cardioid pattern microphone has both great resistance to feedback and clear voice reproduction. The true diversity receiver means you get the highest degree of signal reliability at all times. Sync up the bodypack with the receiver with a single touch of a button. Especially convenient: you can connect an external mute button (option) to the additional 2.5 mm jack socket on the bodypack transmitter.

Sennheiser EW322 Features

  • Sturdy metal housing (transmitter and receiver)
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 24 compatible frequencies
  • Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
  • High-quality true diversity reception
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitter parameter from receiver
  • User-friendly menu operation with more control options
  • Illuminated graphic display, receiver also shows transmitter settings
  • Auto-Lock function avoids accidental changing of settings
  • HDX commander for crystal-clear sound
  • Transmitter feature battery indicatation in 4 steps, also shown on receiver display
  • Programmable Mute function
  • Integrated Equalizer and Soundcheck mode
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement

Sennheiser EW322 Specifications

Receiver principle
True Diversity
Receiver: Sensitivity
<2 µV at 52 dBAeff S/N (with HDX, peak deviation)
Receiver: Adjacent channel rejection
= 75 dB
Receiver: Intermodulation attenuation
= 70 dB
Receiver: Blocking
= 75 dB
Receiver: Pilot-tone squelch
Detachable
Receiver: Antenna inputs
4 BNC sockets
Receiver: AF output voltage
1/4" (6.3 mm) jack socket, unbalanced: +12 dBu XLR socket, balanced: +18 dBu (at peak deviation, 1kHz AF)
Receiver: Power supply
12 V DC
Transmitter: RF output power at 50 ohm
typ. 30/10mW, switchable
Transmitter: AF frequency response
25 - 18.000 Hz (Line)
Max input voltage transmitter / line
3 Veff
Input impedance transmitter / line
40 k ohm, unbalanced / 1Mohm
Transmitter: Power supply
2 AA batteries, 1.5 V
Transmitter: Nominal voltage
2.4 V
Transmitter: Operating time
typ. 8h
Microphone: Transducer principle
Condenser
Microphone: Sensitivity
40 mV/Pa
Microphone: Pick-up pattern
cardioid
Microphone: Max. SPL
120 dB SPL
Receiver: Dimensions
202 x 212 x 43 mm (7.95" x 8.35" x 1.69")
Receiver: Weight
approx. 980 g (2.16 lbs)
Transmitter: Dimensions
82 x 64 x 24 mm / 3.23" x 2.52" x 0.94"
Transmitter: Weight
approx. 160 g (5.64 oz)
Warranty
Sennheiser 2 years limited warranty
