Sennheiser EW512 G3 Wireless Microphone MKE 626-668MHz
Sennheiser

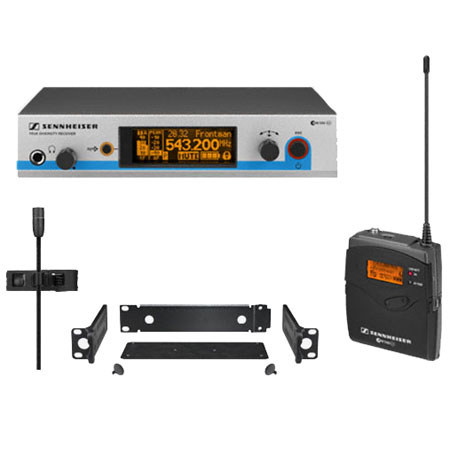

Sennheiser EW512 G3 Wireless Bodypack Microphone System with MKE 2-ew Microphone Frequency Range B (626-668 MHz)

SKU: SEEW512G3B MFR: EW512G3B
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 2 - 4 Weeks from date of order.
What's Included
What's Included With This Item:
  • Sennheiser EM 500 G3 Rack-Mount Receiver
  • SK 500 G3 Bodypack Transmitter
  • MKE 2-ew Clip-on Microphone (Omni-directional)
  • GA 3 Rack Mount
  • NT 2 Power Supply Unit
  • 2 Antennas
  • 2 AA Batteries
  • Operating Instructions
  • Sennheiser 2 Years Limited Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$1,049.95
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

The Sennheiser EW512 G3 Wireless Bodypack Microphone System includes MKE 2-ew, one of Sennheiser's most successful and trusted clip-on condenser microphones. This set relays its high-quality signal via a compact bodypack transmitter to the flagship evolution EM 500 true diversity receiver. Sync up the bodypack to the receiver with a simple press of the sync button. Sennheiser's technical prowess in wireless technology allows you to focus on delivering your most successful presentation ever without worrying about your wireless.

What's Included With This Item

  • Sennheiser EM 500 G3 Rack-Mount Receiver
  • SK 500 G3 Bodypack Transmitter
  • MKE 2-ew Clip-on Microphone (Omni-directional)
  • GA 3 Rack Mount
  • NT 2 Power Supply Unit
  • 2 Antennas
  • 2 AA Batteries
  • Operating Instructions
  • Sennheiser 2 Years Limited Warranty

Key Features

  • Sturdy metal housing (transmitter and receiver)
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 32 compatible frequencies
  • Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
  • High-quality true diversity reception
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitter parameter from receiver
  • User-friendly menu operation with more control options
  • Illuminated graphic display, receiver also shows transmitter settings
  • Auto-Lock function avoids accidental changing of settings
  • HDX commander for crystal-clear sound
  • Transmitter feature battery indicatation in 4 steps, also shown on receiver display
  • Programmable Mute function
  • Integrated Equalizer and Soundcheck mode
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement

Technical Specs

Receiver: Principle True Diversity
Receiver: Sensitivity <2 µV at 52 dBAeff S/N (with HDX, peak deviation)
Receiver: Adjacent channel rejection = 75 dB
Receiver: Intermodulation attenuation = 70 dB
Receiver: Blocking = 75 dB
Receiver: Pilot-tone squelch Detachable
Receiver: Antenna inputs 5 BNC sockets
Receiver: AF output voltage 1/4" (6.3 mm) jack socket, unbalanced: +12 dBu XLR socket, balanced: +18 dBu (at peak deviation, 1kHz AF)
Receiver: Power supply 12 V DC
Transmitter: RF output power at 50 ohm typ. 30/10mW, switchable
Transmitter: AF frequency response 25 - 18.000 Hz (Line)
80 - 18.000 Hz (Mic)
Max. input voltage transmitter 3 Veff
Transmitter: Input impedance transmitter 40 kohm, unbalanced / 1 Mohm
Transmitter: Power supply 2 AA batteries, 1.5 V
Transmitter: Nominal voltage 2.4 V
Transmitter: Operating time typ. 8h
Transmitter: Dimensions 82 x 64 x 24 mm (3.23" x 2.52" x 0.94")
Transmitter: Weight approx. 160 g (5.64 oz)
Microphone: Transducer principle pre-polarised condenser microphone
Microphone: Pick-up pattern Omni-directional
Microphone: Frequency response 20 - 20.000 Hz ± 3 dB
Microphone: Sensitivity (1 kHz) 5 mV/Pa 6 2.5 dB (free field, no load)
Microphone: Nominal impedance 1 kohm
Microphone: Min. terminating impedance 4.7 kohm
Microphone: A-weighted (DIN IEC 651) 26 dB
Microphone: CCIR-weighted (CCIR 468-3) 39 dB
Microphone: Max. SPL 142 dB
Microphone: Power supply 7.5 V
Microphone: Supply current approx. 250 µA
Microphone: Connector LEMO f. SK 50/250
Microphone: Cable length 1.6 m (5.25")
Microphone: Dimensions  4.8 mm (0.19")
Warranty Sennheiser 2 years limited warranty
