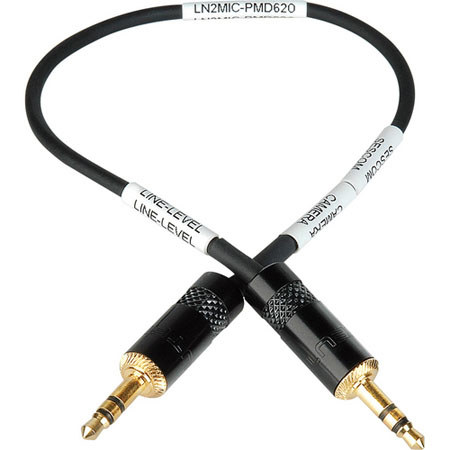

The Sescom LN2MIC-PMD620 features a 33dB L Pad attenuator on audio channels to reduce Line Level output to the camera mic input levelsweet spot level. The cable is designed with the proper impedances to assure maximum voltage transfer and low noise operation. The cable shield is isolated on the camera end to prevent shield noise from directly coupling into the camera connector ground.
The cable allows users to go directly from the audio recorder into the camera, creating a compact and elegant interface solution. All resistors values are 1% metal film to assure similar voltage attenuation between the stereo inputs. Cable ends are labeled for proper connection.
|Audio Input Level||+4dBu (1.737pp) USA Professional Line Level|
|Input Impedance||5K ohms|
|Audio Output Level||Approx. 31mV|
|Output Impedance||92 ohms|
|Compatible with||Canon: EOS-1D Mark IV, EOS 5D Mark II, EOS 7D, EOS 550D Rebel T2i, EOS 60D
Nikon: D3S, D300S
Panasonic: Lumix GH1
