The Sescom LN2MIC-ZOOMH4N cable features a -25dB L Pad attenuator on both audio channels to reduce the Prosumer Line Level output (-10dBV) to the cameras mic input sweet spot level. The cable is designed with the proper impedances to assure maximum voltage transfer and low noise operation. The cable shield is isolated on the camera end to prevent shield noise from directly coupling into the camera connector ground.

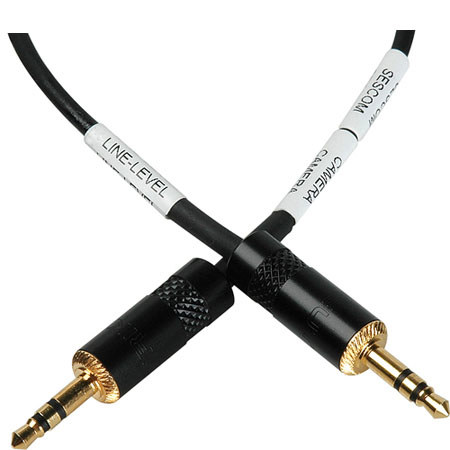

The cable allows users to go directly from the audio recorder into the camera, creating a compact and elegant interface solution. All resistors values are 1% metal film to assure similar voltage attenuation between the stereo inputs. Cable ends are labeled for proper connection.
|Audio Input Level||-10dBV (0.25pp - 0.47pp) Prosumer Line Level|
|Input Impedance||1.5K ohms|
|Audio Output Level||Approx. 14mV|
|Output Impedance||92 ohms|
|Compatible with||Canon: EOS-1D Mark IV, EOS 5D Mark II, EOS 7D, EOS 550D Rebel T2i, EOS 60D
Nikon: D3S, D300S
