Sennheiser MKH8020 Omnidirectional Condenser Microphone
See all Sennheiser items

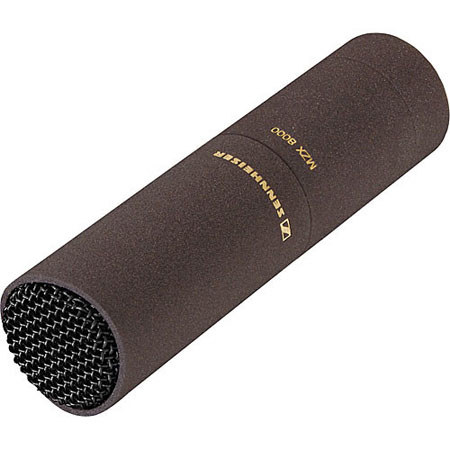

Sennheiser MKH8020 Compact Omnidirectional Condenser Microphone

SKU: SEMKH8020
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Sennheiser MKH8020 Specifications

  • Transducer

    Condenser

  • Polar Pattern

    Omnidirectional

  • Frequency response

    10 Hz - 60 kHz

  • Audio output

    XLR-3M balanced, transformerless, floating

  • Sensitivity

    31 mV/Pa (- 30 dBV/Pa) (in free field, no load (1kHz))

  • Nominal impedance

    25 Ohm

  • Min. terminating impedance

    1000 Ohm

  • Phantom powering

    48 V +/- 4 V

  • Equivalent noise level

    10 dB(A)

  • Equivalent noise level (CCIR 468-3)

    21 dB (weighted as per CCIR 468-3)

  • Maximum sound pressure level (passive)

    138 dB SPL

  • Current consumption

    3.3 mA

  • Dimensions (Dia.xL)

    19x75mm / 0.74x2.95"
    Without XLR module: 19x41mm / 0.74x1.61"

  • Weight

    55g / 1.94oz
    Without XLR module: 25g / 0.88oz

About Sennheiser MKH8020

The Sennheiser MKH8020 Compact Omnidirectional Condenser Microphone is ideal for recording large and small sound sources, for a "Decca Tree" or for use in an OSS "Jecklin Disk" array. As it does not suffer from a proximity effect, it is also a good choice for close-miking. If the acoustic ambiance is right, this microphone will provide very impressive recordings. The extra octave at the bottom end makes the MKH 8020 perfect for recording pipe organs, grand piano and acoustic double-bass.

Sennheiser MKH8020 Features

  • Onmi-directional pick-up pattern
  • Modular design
  • Wide frequency response 10 to 60.000 Hz
  • Symmetrical transducer with 2 backplates providing extremely low distortion
  • Extremely low inherent self-noise
  • Accurate directional pattern
  • Non reflective Nextel coating
  • Ideal for stereo and surround recordings, as an M microphone and for ambience

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Onmi-directional pick-up pattern
  • Modular design
  • Wide frequency response 10 to 60.000 Hz
  • Extremely low inherent self-noise
  • Accurate directional pattern
  • Non reflective Nextel coating

What's in the box:

  • Sennheiser MKH8020 Compact Omnidirectional Condenser Microphone
  • XLR Module MZX 8000
  • Microphone Clip MZQ 8000
  • Windshield MZW 8000
  • User Manual
  • Aluminum Transport Case
  • Sennheiser 2 Year Warranty
