Sennheiser

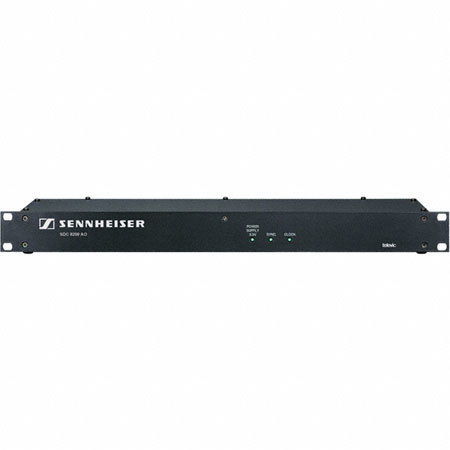

Sennheiser Analog Output Module for SDC 8200 CU Central Unit

SKU: SESDC8200AO MFR: SDC8200AO
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$2,859.95
Free Expedited Shipping
Free Shipping
Qty:
Add to Wishlist

Protect your investment

About the Sennheiser Analog Output Module

The Sennheiser Analog Output Module for SDC 8200 CU Central Unit is used with the SDC 8200 CU Digital Conference and Interpretation System. The output module features a total of 9 balanced XLR outputs for isolating the floor language and up to eight translations to IR wireless equipment, mixers, recording gear, PA systems, etc. The SDC 8200 AO is powered via the central unit.

Sennheiser Analog Output Module Features

  • 9 transformer balanced XLR-3M output sockets for the floor language and eight translations
  • 2 unbalanced RCA phono output sockets for the floor language (conference channel)
  • 8 unbalanced RCA phono output sockets for eight translations (interpreter channels)
  • 4-pin Phoenix connector for switching external units
  • 1 RJ 45 socket for connecting the output unit to the SDC 8200 CU central unit
  • 1 RJ 45 socket for connecting an additional SDC 8200 AO (up to four output units can be daisy chained)

Sennheiser Analog Output Module Specifications

Audio-XLR connector 9 x XLR-3-M; 10 x Cinch
Frequency response 100 - 14,000 Hz
Power consumption 1.6 W
Operating temperature +5 deg.C to +50 deg.C
Output impedance < 80 Ohm (1kHz)
Output level Max. 8 dBu
Voltage 48 V DC via SDC 8200 CU DATA OUT port
Dimensions 485x46x186mm / 19.09x1.81x7.32"
Weight 2.7kg / 5.95lbs
