Sennheiser

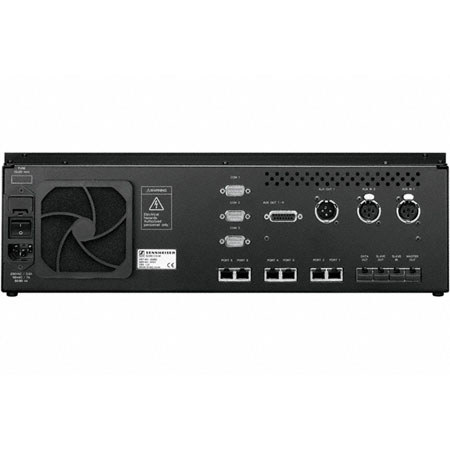

Sennheiser Conference System Central Unit with Power Supply for 120 Delegate Units

SKU: SESDC8200CU MFR: SDC8200CU
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$5,199.95
Free Shipping
Qty:

Add to Wishlist

About this item

The Sennheiser Conference System Central Unit with Power Supply for 120 Delegate Units is designed to be a power supply and control device for up to 120 delegate terminals for Sehnneiser's SDC 8200 conference system. It can also power up to four SDC 8200 AO analog output units. It supports up to 15 simultaneous live microphones and nine conference modes. It connects to delegate microphone terminals in the SDC 8200 system via its six RJ 45 ports, each of which supports 20 terminals each.

The Central Unit supports up to 28 interpreter channels for translated languages and has two selectable voting modes with automatic tallying. The Central Unit has two XLR auxiliary mic inputs as well as an XLR auxiliary out for the floor language. A 15-pin Sub-D output provides a direct output of the floor language and up to five translations. Three RJ-232 ports provide connections for PC, media and camera control. A 1/8" front-panel headphone input allows for monitoring the system.

Key Features

  • Built-in power supply unit for up to 120 delegate terminals and four SDC 8200 AO analog output units
  • Easy system expansion by daisy-chaining up to 12 central units for a total number of 1,024 conference terminals
  • Choice of nine conference modes: Direct Access, Group of 1, Group of 2, - Group of 3, Group of 4 FIFO, Override, Request and Request No Clear
  • One additional mode with PC control only: No Request
  • Up to 15 simultaneously live microphones (depending on mode selected)
  • Up to 28 translated languages (interpreter channels)
  • Camera control interface
  • Two voting modes with automatic tallying (yes/no/abstention or one out of five)
  • Six RJ 45 sockets for six cable lines with up to 20 terminals each
  • Two transformer balanced XLR-3F inputs
  • One transformer balanced XLR-3M output for the floor language (conference channel)
  • Six unbalanced outputs on 15-pin Sub-D connector for the floor language and five translations
  • "Master Out", "Slave In" and "Slave Out" RJ 45 sockets for cascaded central units
  • "Data Out" RJ 45 socket for the SDC 8200 AO analog output unit
  • 3.5 mm headphone socket for monitoring
  • Three RS 232 sockets for PC, media and camera control

Technical Specs

I/O 2x XLR3-F Transformer-Balanced Auxiliary Inputs
1x XLR3-M Transformer Balanced Auxiliary Output
6x RJ 45 Input Ports
3x RJ 232 Sockets for PC, Media and Camera Control
1x RJ 45 Master Out
1x RJ 45 Slave In
1x RJ 45 Slave Out
1x RJ 45 Data Out
1x 15-Pin Sub-D Auxiliary Output
1x 1/8" (3.5 mm ) Headphone Output
Audio-XLR connector UX OUT 1; XLR-3-M transformer-balanced
Frequency response 100-14,000 Hz
Audio input 2 x AUX IN; XLR-3-F transformer-balanced
Operating temperature +5 deg.C to +50 deg.C
Signal-to-noise ratio 75 dB(A)
Output impedance < 200 Ohm (1kHz)
Current consumption Max. 3.5 A (230VAC); max. 7.0 A (115 VAC)
Input voltage range +3dBu
Output voltage 48 V (Conference Port 1-6)
Fan noise 48 dBA SPL (1m)
Fuse 3.15 A (230 VAC); 7 A (115 VAC)
Input impedance > 6 kOhm (1kHz)
Mains voltage 88 - 264 VAC (47-63 Hz)
Output level Max. +8 dBu
PC-Interface COM 1-3; RS 232 SUB-D-9
Dimensions 485x141x265mm / 19.09x5.55x10.43"
Weight 6kg / 13.22lbs
