Sennheiser XSW 12 Presentation Set Wireless Lavalier Microphone System, 548-572 MHz Frequency Range, 960 Tunable Frequencies

Our Price

$399.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

List Price: $509.00

Availability: In Stock & Ready to Ship

Free Overnight Shipping

See all shipping options

Ways To Save

More Buying Options

Product Highlights

  • True Diversity reception for worry-free operation
  • 24 MHz switching bandwidth
  • 960 available frequencies, tunable in 25 kHz steps
  • Up to 10 hours of operation
  • Up to 250 feet of transmission range
  • Illuminated audio mute button on transmitters
  • Balanced (XLR) and unbalanced (1/4") outputs
  • 2 frequency ranges
Sennheiser XSW 12: Picture 1 regular $399.95

About Sennheiser XSW 12

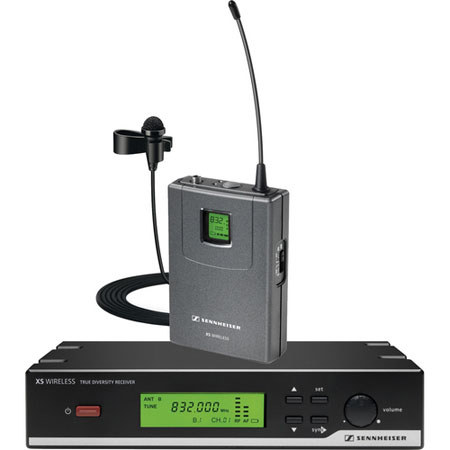

The Sennheiser XSW 12 Presentation Set Wireless Lavalier Microphone System (548 - 572 MHz Frequency Range) delivers Sennheiser sound quality and performance in an affordable, easy to use package aimed at houses of worship, presentations and more. The XSW 12 Presentation Set features a true diversity receiver and bodypack transmitter with an omnidirectional, lavalier microphone well suited for speech and vocal capturing.

The system operates on the 24 MHz UHF frequency band and features 960 tunable frequencies, 8 frequency banks and 12 coordinated channels per bank. True diversity reception greatly minimizes noise, interference and artifacts. Both the transmitter and receiver are capable of remote channel sync and the transmitter will operate for up to 10 hours on 2 AA batteries.

Sennheiser XSW 12 Features

  • True Diversity reception for worry-free operation
  • 24 MHz switching bandwidth
  • 960 available frequencies, tunable in 25 kHz steps
  • 8 frequency banks containing 12 coordinated channels each
  • Powerful scan function identifies available channels within a bank
  • Component synchronization at a distance with new "Remote Channel" sync
  • Up to 10 hours of operation with (2) AA batteries
  • Up to 250 feet of transmission range
  • Illuminated audio mute button on transmitters
  • Balanced (XLR) and unbalanced (1/4") outputs
  • 2 frequency ranges: A (548-572 MHz) and B (614-638 MHz)

Sennheiser XSW 12 Specifications

Modulation
Wideband FM
Frequency range
A: 548-572 MHz, B: 614-638 MHz
Switching bandwidth
24 MHz
Frequencies
960, tunable in 25 kHz steps
Frequency presets
8 frequency banks, each with 12 coordinated factory-preset channels
Signal-to-noise ratio
= 103dBa
Total harmonic distortion (THD)
= 1%
Temperature range
32deg. F to 104deg. F
(0deg. C to +40deg. C)
undefined
Receiver principle
True diversity
Sensitivity (at peak deviation)
< 3 uV at 52 dBarms S/N
Adjacent channel rejection
= 60dB
Intermodulation rejection
Intermodulation rejection = 50dB
Blocking
= 65dB
AF frequency response
60 Hz - 16 kHz
Antenna input
2 BNC connectors, 50 Ohm
AF output voltage
XLR (balanced): +14 dBu; 1/4" (unbalanced): +8 dBu
Receiver power supply
12 VDC nom. / 300 mA
Dimensions
13.39 x 13.58 x 3.35 in / 340 x 344 x 85.09 mm
Weight
3.59 lbs x 1.62 kg
Mfr #
XSW12-A
SKU
SEXSW12A

Sennheiser XSW 12 Reviews Powered by TurnTo®

Reviewed by 1 customers


4.0

Very Pleased

By

I haven't really tried out all the features of this microphone, but so far, I'm pretty happy with it. It allows for changing the frequency settings in extremely small increments, like 0.25 Hz or less. So you don't simply have to stick with just a few channels. The clip on this microphone is also quite a bit different than I'm used to on most lapel microphones. Instead of an "alligator" style clip, it's a molded plastic clip that just slides on to the speaker's clothing. That also makes the cable last much longer, because people can't clip it on to the cable and break it.
