About Sennheiser XSW 12

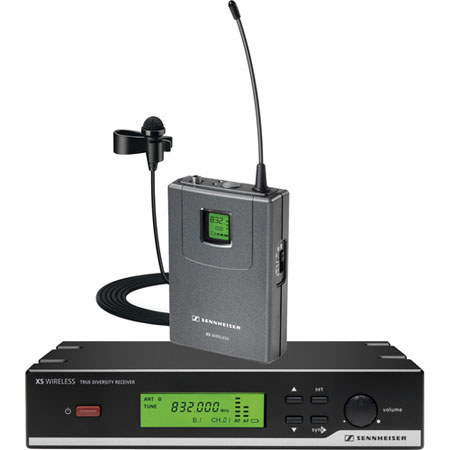

The Sennheiser XSW 12 Presentation Set Wireless Lavalier Microphone System (614 - 638 MHz Frequency Range) delivers Sennheiser sound quality and performance in an affordable, easy to use package aimed at houses of worship, presentations and more. The XSW 12 Presentation Set features a true diversity receiver and bodypack transmitter with an omnidirectional, lavalier microphone well suited for speech and vocal capturing.

The system operates on the 24 MHz UHF frequency band and features 960 tunable frequencies, 8 frequency banks and 12 coordinated channels per bank. True diversity reception greatly minimizes noise, interference and artifacts. Both the transmitter and receiver are capable of remote channel sync and the transmitter will operate for up to 10 hours on 2 AA batteries.

Sennheiser XSW 12 Features

  • True Diversity reception for worry-free operation
  • 24MHz switching bandwidth
  • 960 available frequencies, tunable in 25 kHz steps
  • 8 frequency banks containing 12 coordinated channels each
  • Powerful scan function identifies available channels within a bank
  • Component synchronization at a distance with new "Remote Channel" sync
  • Up to 10 hours of operation with (2) AA batteries
  • Up to 250 feet of transmission range
  • Illuminated audio mute button on transmitters
  • Balanced (XLR) and unbalanced (1/4") outputs

Sennheiser XSW 12 Specifications

True Diversity
Wideband FM
(at peak deviation) < 3 uV at 52dBarms S/N
Frequency Range
614 - 638MHz
Switching Bandwidth
Adjacent Channel Crosstalk
= 60dB
Intermodulation Distortion
Intermodulation rejection = 50dB
960, tunable in 25kHz steps
Frequency presets: 8 frequency banks, each with 12 coordinated factory-preset channels
= 65dB
Frequency Response
60Hz - 16kHz
Signal-to-Noise Ratio
= 103dBa
= 1%
32 to 104deg. F (0 to +40deg. C)
Antenna Inputs
2 BNC connectors, 50 Ohms
Output Voltage
XLR (balanced): +14dBu; ¼" (unbalanced): +8dBu
(at peak dev., 1kHz AF)
Power Supply
12VDC nom. / 300mA
13.39 x 13.58 x 3.35" (34.01 x 34.49 x 8.50cm)
3.59 lb (1.62 kg)

Sennheiser XSW 12 Reviews

Reviewed by 1 customers


Very Pleased


from Indianapolis, IN  -  Experienced

I haven't really tried out all the features of this microphone, but so far, I'm pretty happy with it. It allows for changing the frequency settings in extremely small increments, like 0.25 Hz or less. So you don't simply have to stick with just a few channels. The clip on this microphone is also quite a bit different than I'm used to on most lapel microphones. Instead of an "alligator" style clip, it's a molded plastic clip that just slides on to the speaker's clothing. That also makes the cable last much longer, because people can't clip it on to the cable and break it.
